Infinity KaleidoScope 8-Gobo Spin Projector Guide
Short answer: The Infinity KaleidoScope 8-Gobo Spin Projector loads eight gobo designs onto a motorized carousel that rotates continuously, cycling through all eight for Infinity's biggest moving light show. It ships with both the TriScope™ (3-Prism) and PentaScope™ (5-Prism) lenses included free (a $547.76 value bundled at no extra cost), so each rotating image can also be optically split into a 3- or 5-copy pattern — up to 40 total projected images in rotation. It runs 80W to 700W and $1,417.88 to $3,267.88 across 11 power tiers, with two free full-color custom gobos and IP65 weatherproofing included on every unit.
When a fixed image isn't enough — you want a wall or dance floor that never sits still — the 8-Gobo Spin is the flagship of Infinity's rotating KaleidoScope line. It's built for exactly one job: maximum motion, maximum variety, from a single projector. Here's how the mechanism works, what it costs, and how to size it for a real stage or dancefloor.

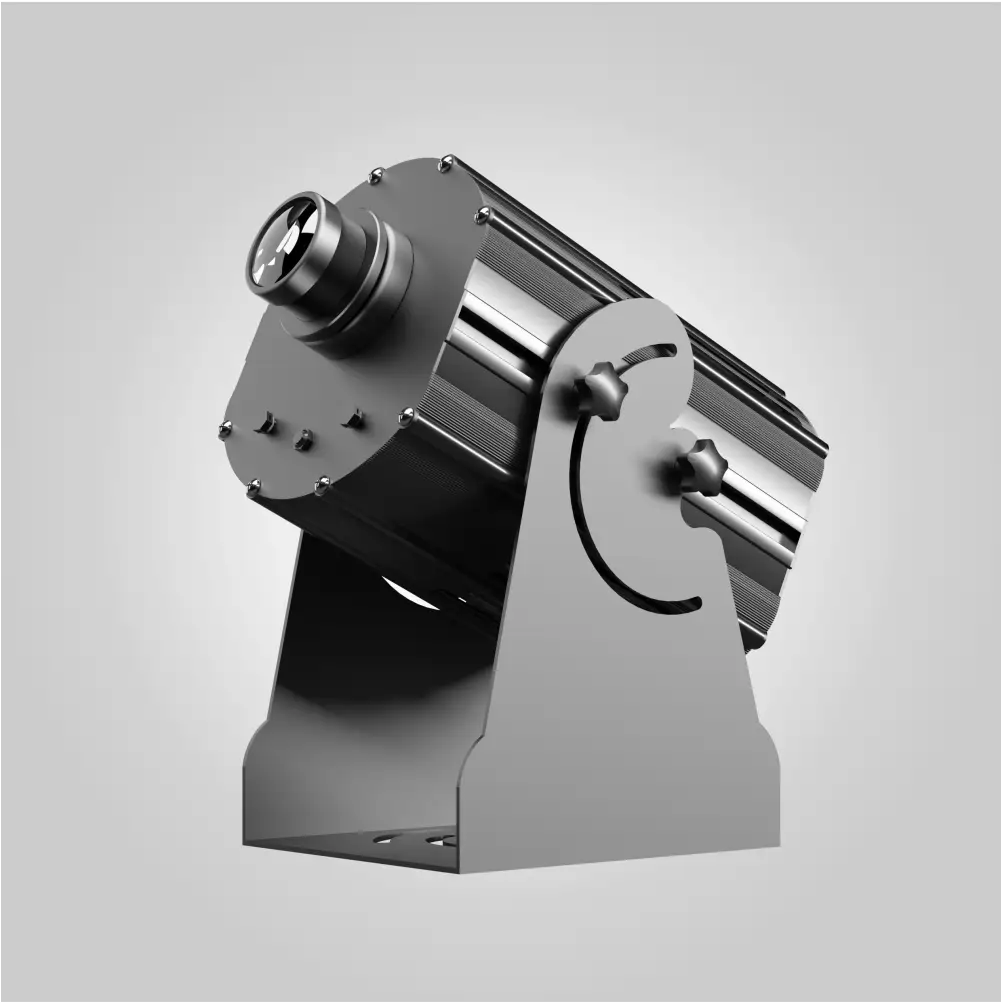

What is the Infinity KaleidoScope 8-Gobo Spin Projector?
It's a single LED gobo projector built around an 8-position carousel that's motorized — the wheel holding all eight gobo slides rotates continuously while the unit runs, cycling the projected image from one design to the next in a smooth, repeating loop. It's the largest-capacity rotating projector Infinity builds — more designs in rotation than the 4-Gobo Spin or 6-Gobo Spin — and the go-to choice for dancefloors, stages, and large events that want constant visual motion rather than a still backdrop.
It uses the same commercial-grade LED light engine as the rest of Infinity's gobo line, sized specifically for this housing: 80W up to 700W. Every KaleidoScope 8-Gobo Spin ships with two free full-color custom gobos, both the TriScope™ and PentaScope™ prism lenses included free, and is IP65-rated for outdoor and washdown-safe indoor use.
How the rotating 8-gobo carousel works — and how it compares to the rest of the line
Inside the housing, the same eight gobo slides used on the Static model sit on a carousel in front of the LED engine and lens — the difference is a small motor that keeps that carousel turning continuously. As it turns, the projected image cycles from design one through design eight and loops back around, blending briefly between images as each slide passes through the light path. The result reads as constant motion and rhythm rather than eight separate, momentary flashes — it's built to hold a room's attention the way a still image can't.
Rotation and lens are two separate, stacking layers: the motorized carousel decides how many distinct designs cycle through (eight, on this model), and the prism lens in front of it decides how many times whichever image is currently in the light path gets optically repeated on the wall. Swap in the TriScope™ and each design cycles through as a 3-copy cluster (24 images in rotation); swap in the PentaScope™ and each cycles through as a 5-copy cluster (40 images in rotation, the most of any Infinity projector). Both lenses ship in the box — one installed at the factory (your choice), one packed as a free spare — so you can switch the effect on-site with a simple lens swap, at no extra cost.
TriScope™ vs. PentaScope™ — the free lens upgrade built into every KaleidoScope
On Infinity's standard single-image projectors, these multiplying lenses are optional paid upgrades: TriScope™ (3-Prism) is +$188.88 and PentaScope™ (5-Prism) starts at +$358.88. The real headline value of the KaleidoScope line is that the 8-Gobo Spin includes both, free — a combined $547.76 of optics bundled into every unit at no extra charge.
Real footage of each effect (single gobo, single lens, before the rotating 8-gobo carousel adds motion on top):
On the 8-Gobo Spin, that per-image multiplication rides along with the rotation — whichever of the eight designs is currently in the light path gets multiplied the same way — so the honest ceiling is up to 40 total images in rotation with the PentaScope™ installed, or 24 with the TriScope™.
8-Gobo Spin (this projector)
All eight designs cycle continuously, one at a time, in a repeating rotation. Best when you want energy and motion — a feature the eye keeps coming back to, not a static graphic it registers once and moves past.
8-Gobo Static
The same eight-slide carousel, but fixed in place — all eight designs project together at once instead of cycling. Trades motion for simultaneous, always-visible coverage. See the 8-Gobo Static Projector.
The 8-Gobo Spin sits at the top of a family of rotating KaleidoScope projectors built around the same motorized-carousel idea at smaller capacities:
4-Gobo Spin
Four rotating slide positions — a lower-cost entry point for a shorter rotation, good for a smaller event or a tighter design lineup.
6-Gobo Spin
Six rotating slide positions — the middle tier, for a longer cycle than four designs without stepping up to the full eight.
Curious whether spin or static motion fits your install better in general? Our Static vs. Rotating Gobo Projector guide covers the tradeoff beyond just the KaleidoScope line.
Wattage & venue-size buying guide
The 8-Gobo Spin ships in the same 11 wattage tiers as the Static model, priced slightly higher at every tier for the added motor and rotation hardware. As a rule of thumb, size for the room's ambient light and how far the image needs to throw — a rotating pattern still needs to out-shine the room to read clearly in motion, so don't undersize just because motion "feels" more visible:
| Wattage | Price | Typical setting |
|---|---|---|
| 80W | $1,417.88 | Small dance floor or lounge, dim lighting, short throw |
| 100W | $1,467.88 | Average indoor lighting, mid-size private event space |
| 130W | $1,617.88 | Larger ballroom dance floor, longer throw distance |
| 150W | $1,857.88 | Big ballroom or club floor, mixed ambient lighting |
| 160W | $2,017.88 | Large indoor venue or a covered outdoor patio at dusk |
| 200W | $2,167.88 | Bright event hall or shaded outdoor space at dusk |
| 300W | $2,367.88 | Large stage element, nightclub main room, bright ballroom |
| 400W | $2,647.88 | Outdoor stage or facade at night, large event feature |
| 500W | $2,917.88 | Big outdoor event, long throw, ambient light present |
| 600W | $3,097.88 | Festival main stage, large building facade at night |
| 700W | $3,267.88 | Flagship large-venue install — longest throw, brightest ambient light |
These are starting points, not a substitute for sizing your actual room. Ceiling height, throw distance, and ambient stage or venue lighting all shift the right tier — use the free Projector Finder or Wattage Finder to confirm the exact wattage before you order.
Where the 8-Gobo Spin earns its place
This is Infinity's flagship motion fixture — the highest gobo count paired with the only line that bundles both prism lenses free — built for the events and productions that want a room to feel alive rather than lit:
Dancefloors & nightclubs
A continuously cycling 8-design pattern across the floor keeps the space visually active all night, without the cost or complexity of a full lighting rig.
Concert & festival stages
Production teams run the 8-Gobo Spin as a rotating stage-element or facade feature — eight sponsor marks or show graphics cycling through the night, visible from the back of a large crowd.
Large-venue brand activations
An experiential or pop-up brand space can cycle a full set of graphics — logo, tagline, product shots, partner marks — automatically, with no one swapping slides by hand.
Hospitality & nightly features
Hotels, resorts, and event venues run the 8-Gobo Spin as a signature nightly facade or lobby feature — eight rotating designs that make the space a destination, not just a backdrop.
Deciding between Spin and Static
Pick 8-Gobo Spin if:
You want motion and energy — a dance floor, nightclub, or festival stage where a slowly cycling, ever-changing pattern holds attention better than a fixed one.
Pick 8-Gobo Static if:
You need all eight designs visible at the same time — sponsor boards, step-and-repeat walls, or any backdrop that gets photographed, where motion would blur the shot. See the full 8-Gobo Static buying guide.
Frequently asked questions
What is the Infinity KaleidoScope 8-Gobo Spin Projector?
It's a single LED gobo projector with a motorized 8-position carousel that rotates continuously, cycling through eight gobo designs in a repeating loop — Infinity's largest-capacity rotating gobo projector. It runs 80W to 700W and $1,417.88 to $3,267.88, with two free full-color custom gobos and IP65 weatherproofing included.
What's the difference between the 8-Gobo Spin and the 8-Gobo Static?
Both hold the same eight gobo slides. The Spin motorizes the carousel so it rotates continuously, cycling through the eight designs one at a time for constant motion. The Static keeps the carousel fixed so all eight designs project together at once, with zero movement. Spin suits dance floors and stages that want visible motion; Static suits photographed backdrops and sponsor walls.
How is the 8-Gobo Spin different from the 4-Gobo and 6-Gobo Spin models?
All three use the same motorized-carousel mechanism — they differ only in how many gobo slides are in rotation: four, six, or eight. The 8-Gobo Spin is the largest capacity in the rotating KaleidoScope line, giving the longest cycle and the most variety in motion, at a correspondingly higher starting price.
How fast does the carousel rotate?
The carousel turns at a steady, continuous pace designed to read as smooth motion rather than a rapid flicker — each of the eight designs holds briefly in the light path before blending into the next. It's built for ambience and visual interest, not a strobe effect.
What wattage do I need for a dance floor or stage?
For a typical indoor dance floor or private event space with average lighting, 100W–200W is the common starting range; for a large ballroom, nightclub main room, or stage element, 300W–500W is more realistic; outdoor stages, facades, and festival-scale installs generally call for 500W–700W. Exact sizing depends on throw distance and ambient light — use the free Projector Finder to confirm before ordering.
Does the 8-Gobo Spin work outdoors?
Yes. Every wattage tier is IP65-rated, sealed against rain, dust, and washdown, so it's suitable for outdoor stages, facades, and event installations as well as indoor venues.
What are TriScope™ and PentaScope™, and do they cost extra?
They're Infinity's prism lenses: TriScope™ splits a single projected image into 3 repeating copies, PentaScope™ splits it into 5. On Infinity's standard single-image projectors they're paid upgrades (TriScope™ +$188.88, PentaScope™ from +$358.88). The 8-Gobo Spin includes both, free, with one preinstalled at the factory and one packed as a spare — no extra cost over the unit price shown.
How many total images can the 8-Gobo Spin project?
Up to 40 in rotation. Eight gobo designs cycle through the motorized carousel, and with the PentaScope™ (5-Prism) lens installed, each one is optically split into 5 copies as it passes through the light path — 8 × 5 = 40 images across the full rotation. With the TriScope™ (3-Prism) lens instead, that's 8 × 3 = 24 images.
Can I change which eight images are loaded later?
Yes — gobo slides are physical discs that slot into the carousel, so any of the eight positions can be swapped for a new design as your event lineup, season, or sponsor list changes. The projector and motor don't need to be replaced.
