Projection may seem technical, but it’s guided by a few simple truths—think of them as the laws of light:
IP-DGL-150
150W
Black
15000 lm
1-2 Weeks
OUTDOOR
1:0.25
>More Revolutionary Products:
Infinity Titan Outdoor High Wattage Gobo Projector (150W–1500W)
Infinity Titan Outdoor High Wattage Gobo Projector (150W–1500W)
150W-1500W Wattage
2 Free Custom Gobos Free
Up to 30000 Hours of Use
4K/HD Imaging
IP65 Waterproof
1:0.3, 1:0.2, 1:0.6, 1:1 Lens Available
Rotating Logo
Remote Control Free
Shipping Free*
Launch Preview Pilot
Subscribe to Newsletter
Product Flyer

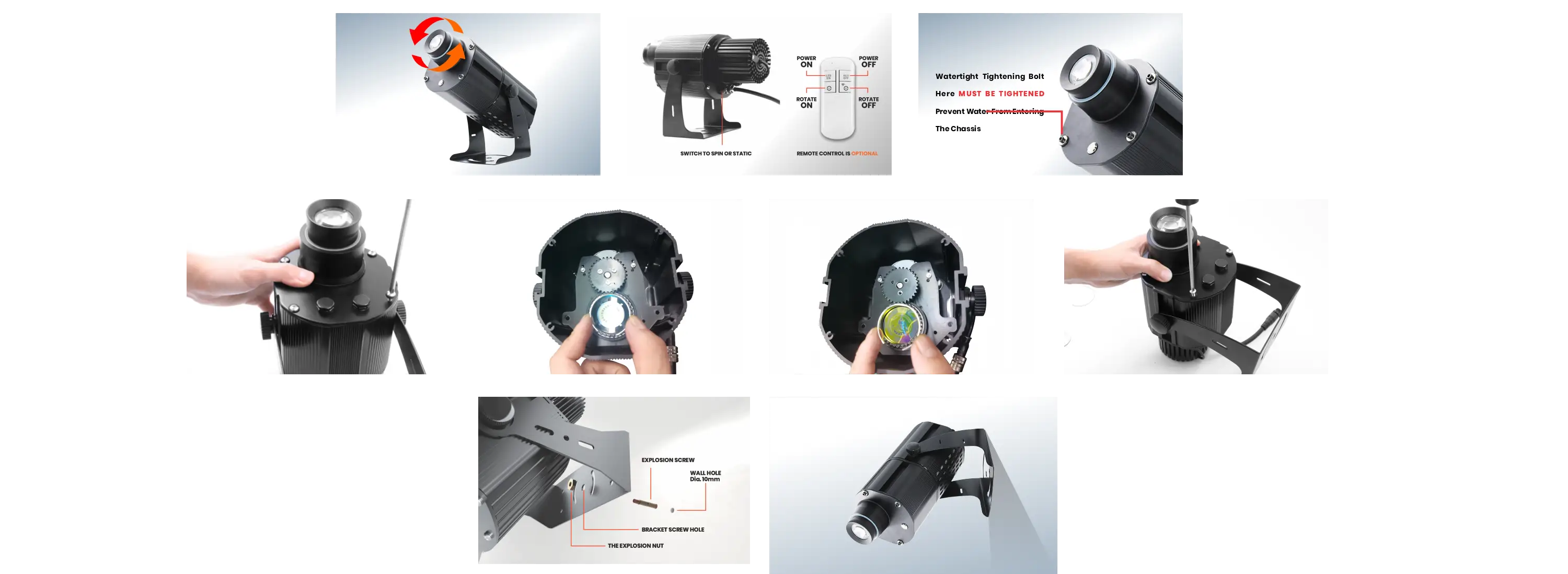

Installation Manual
View Stock Gobo Collection
Launch Gobo Designer
Join the Gobo Revolution!

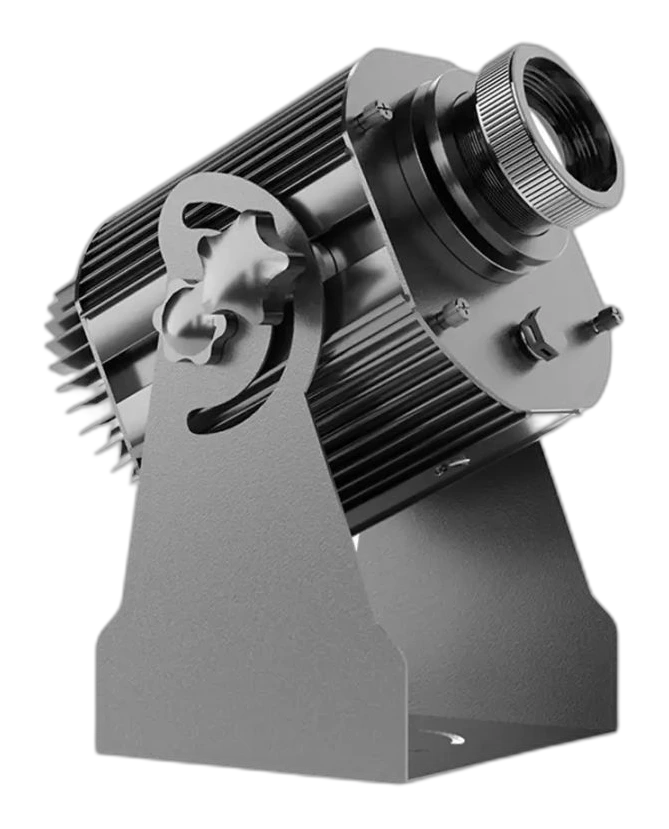

The Power of Scale ∞

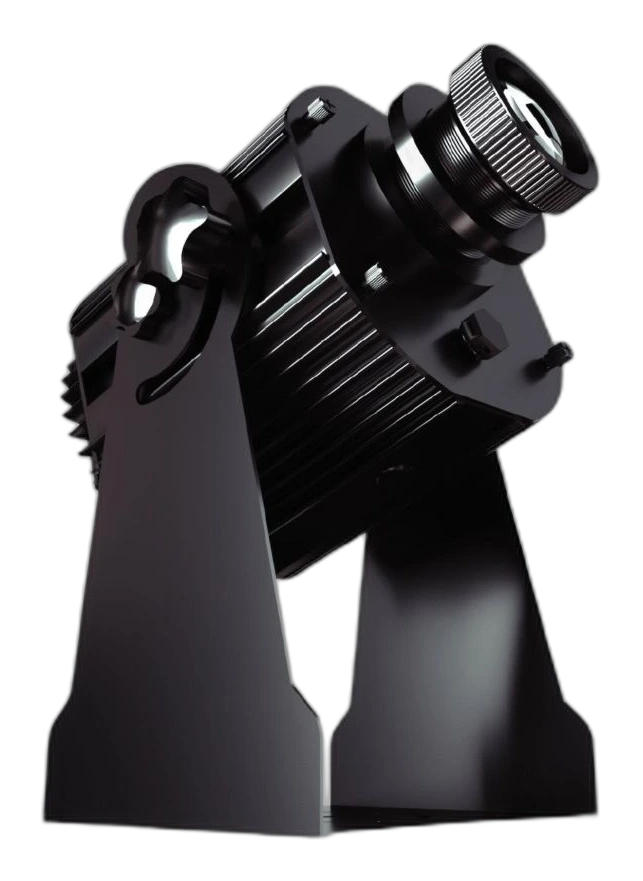

The Infinity Titan High-Wattage Gobo Projector is built for installs where standard logo projectors can’t hold up—long mounting distances, larger projection sizes, and bright environments that demand serious output. It’s IP65 outdoor waterproof for dependable year-round use (recommended ~8 hours/day) and works beautifully across warehouses & distribution centers, hotels/resorts, casinos, real estate & property launches, auto dealerships, shopping centers, event venues, campuses, and municipal spaces. In warehouses, it’s a powerful way to project high-visibility safety guidance like pedestrian lanes, forklift zones, warning marks, dock IDs, and wayfinding—clean, consistent, and easy to update. Every Titan includes free shipping, 2 Free Custom Gobo Slides, a FREE remote, and you can run it in Static mode for crisp signage or Spinmode when you want extra attention.
Choosing wattage is simple: it depends on (1) mounting distance, (2) projection diameter, and (3) ambient brightness. The rule: farther + larger + brighter = higher wattage. Titan runs 150W–700W, with an extreme option up to 1500W. For shorter throws or lower-output needs, see PowerPrince (35W–120W).
Default lens: 0.25 (ideal for long throws). Size guide: projection diameter ≈ distance × lens value.
Lens upgrades: 0.15, 0.2, 0.33, 0.45, 0.65, 1.0, 1.3 + 3-lens / 5-lens packages → Multi-Lens Projectors
Upgrade options:
Meanwell power supply Upgrade (up to 50,000 hours), power cord length upgrades, additional remotes
Automation ready: PLC / sensor integration available (motion, doors, schedules, facility workflows)—contact us for your setup

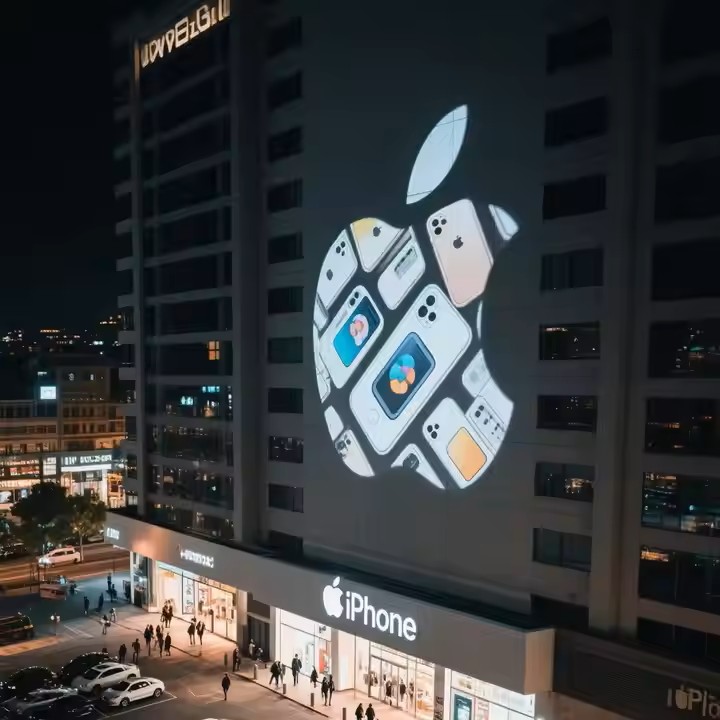

Welcome to the Projection Revolution ∞—go beyond signs and turn any surface into a message people can’t ignore.
| WATTAGE
BRIGHTNESS |
More wattage means greater reach. Long distances, bright spaces, and wide lens spreads all demand more power. Our chart provides guidance, but we recommend going higher whenever possible: it’s easier to dim light than to |
| PROJECTION SIZE
LENS SIZE X DISTANCE |
The Titan comes with a default 1:0.3 lens, delivering impressively large images at distance. Wider lenses expand the image even further, but spread the light thinner—requiring more wattage. |
| CUSTOMIZATION
YOUR STORY AT SCALE |
Each projector includes 2 free full-color gobos—your logo, message, or safety graphic, ready to shine. With Titan’s power, those gobos don’t just display—they dominate. |
| 1 LOGO OR MULTIPLE
BRANDING |
Do you want to project 1 logo—or multiple? For one design, the PowerPrince is your match. For 4, 6, or 8 gobos in rotation, see our Multi-Gobo Projectors ». |
STATIC OR SPIN Mode
Project your logo in steady static mode or switch to attention-grabbing spin mode for extra impact.
Perfect for outdoor signage, branding, and promotions.

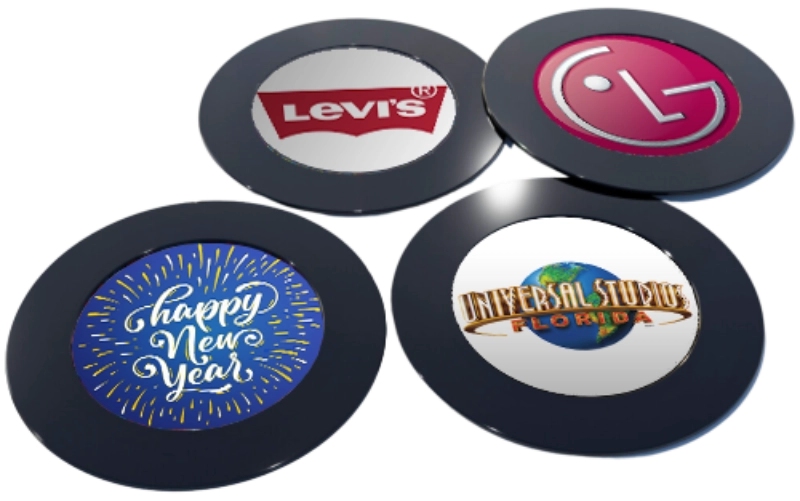

Custom Gobos
Custom Gobos allow you to customize the logo or message using custom glass gobos. Our glass Gobo is a small circular slide that is loaded into the projector. Your logo or advertising message is etched into the Gobo. When the LED lights reflects off the Gobo, the logo is projected in lights The projectors include a premium aluminum alloy design and includes a free remote control that makes it easy to adjust your settings when the projector is out of reach after being installed. The projector is easy to hang and allows you to adjust the positioning for desired look.
We offer a full line of Outdoor Gobo Projectors, High Wattage Projectors as well as Digital Signage With Touchscreen Technology.
2 Free Custom Gobos
Customize your projection with two free custom gobos.
Receive 1 Full Color and 1 - 1 Color custom Gobo (select from our swatch colors).
Upgrade to full color for only $25.
Free
Free
1 one-color and 1 full-color gobo
Power & Clarity
Super High Wattage 150-watt up to 1500-watt models with state-of-the-art 4K/HD imaging for exceptional brightness and sharp projection.
| Wattage | Model | Projection Range |
|---|---|---|
| 150W | IP-DGL150 | Up to 50ft in the dark |
| 200W | IP-DGL200 | Up to 65ft in the dark |
| 300W | IP-DGL300 | Up to 100ft in the dark |
| 500W | IP-DGL500 | Up to 165ft in the dark |
| 700W | IP-DGL700 | Up to 230ft in the dark |
| 1000W | IP-M1000 | Up to 300ft in the dark |
| 1500W | IP-M1500 | Up to 350ft in the dark |

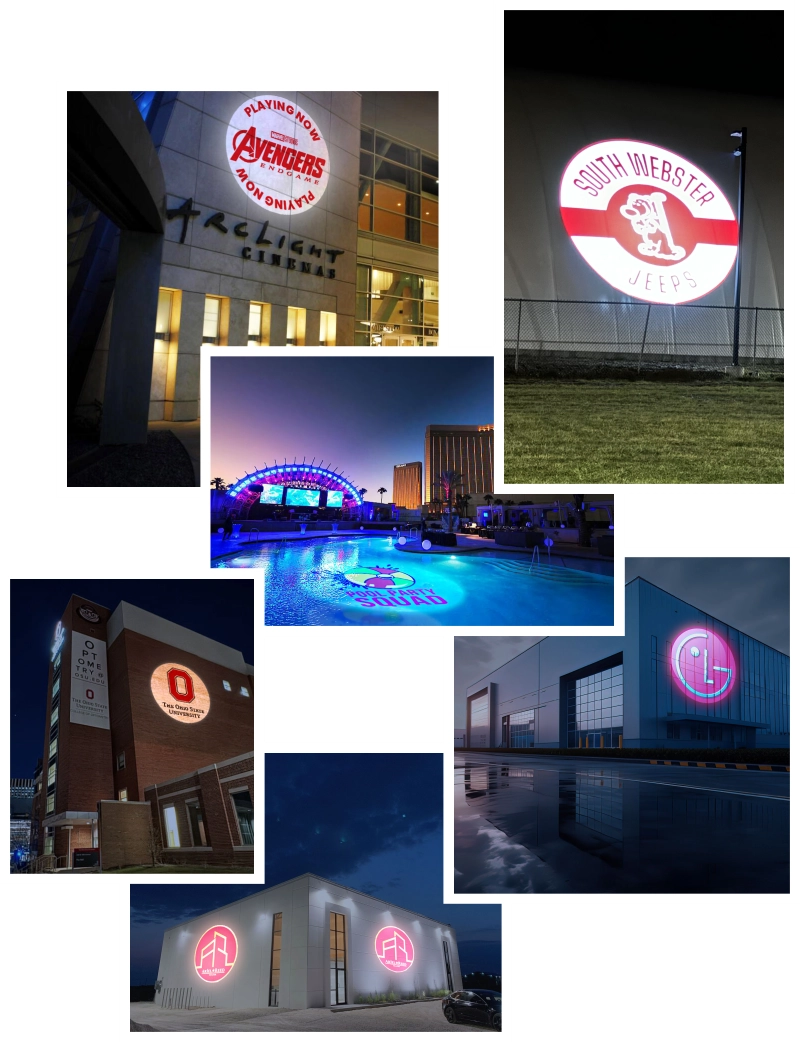

4K/HD Imaging
Achieve crisp, clear projections that can illuminate any surface with superior quality.
Up to 30000 hours of use
Our projectors are built to last even in extreme weather, with a cooling fan for optimal performance in hot environments.
Free Shipping (To Most Countries)
We offer free graphic design services and shipping to most countries.
Free Remote Control
Easily adjust your projector settings with the included remote control for hassle-free operation.
Easy Setup
Installation is straightforward—mount, adjust, and illuminate.
Fast Turnaround
Receive your projector within 2-3 weeks of art approval and payment

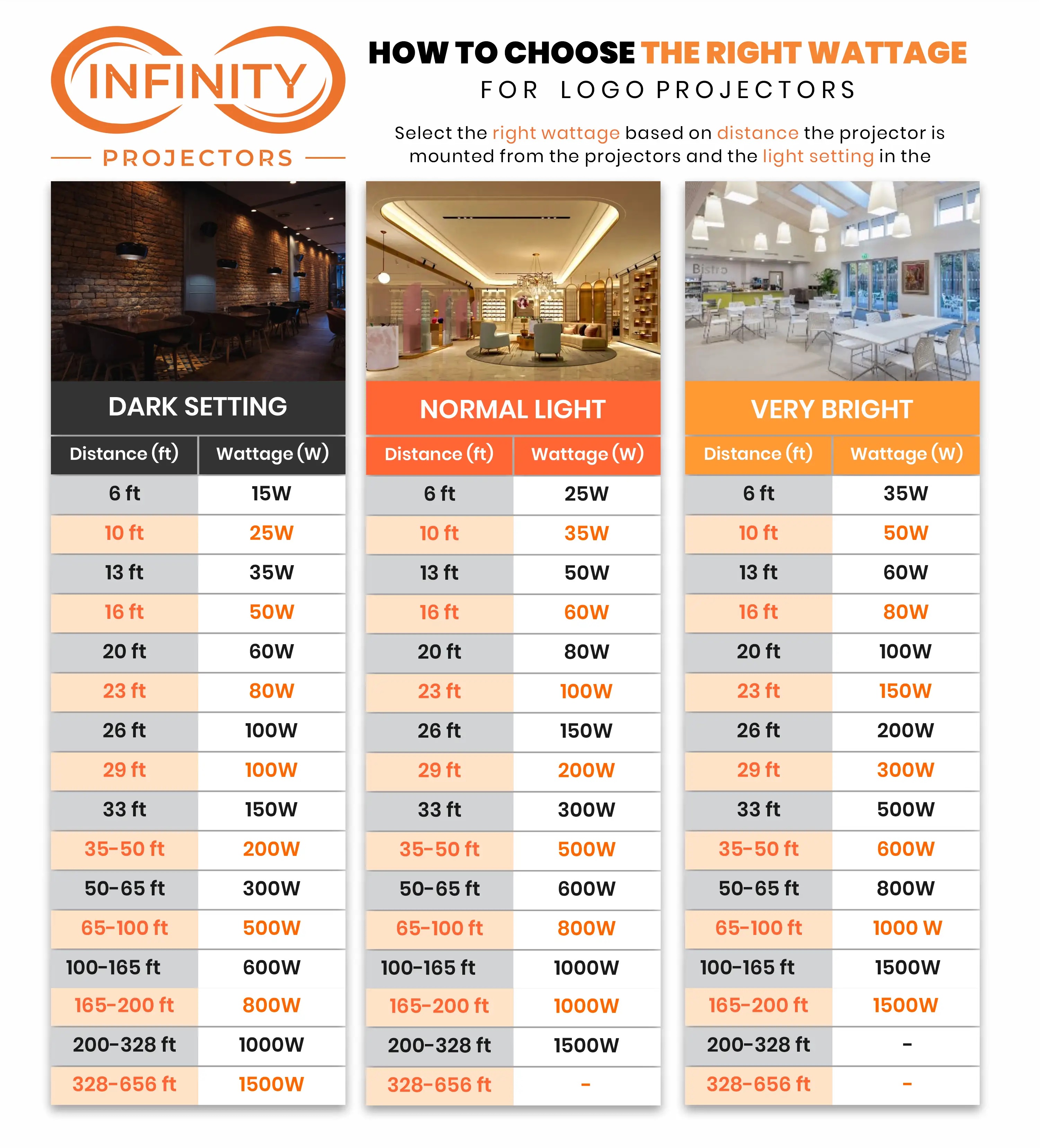

How to Choose the Right Wattage
For Advertising Projection Lamps
Select the right wattage based on distance the projector is mounted from the projector and the light setting in the projection area.
Recommended Wattage (Swipe →)
| Installation Distance (ft) | 23' | 26' | 29' | 33' | 35'-50' | 50'-65' | 65'-100' | 100'-165' | 165'-200' | 200'-328' | 328'-500' | 500'-656' |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dark Setting | 80W | 80W | 100W | 100W | 150W | 200W | 300W | 500W | 700W | 700W | 1000W | 1500W |
| Normal Setting | 100W | 100W | 150W | 150W | 200W | 300W | 500W | 700W | 700W | 1000W | 1500W | - |
| Very Bright Setting | 150W | 200W | 200W | 300W | 500W | 700W | 700W | 1000W | 1500W | - | - | - |
Check out more information on choosing
the
right wattage for your gobo projector.
View More Info
POWER & DISTANCE GUIDE
(Based on Infinity wattage chart — accurate across dark and bright settings.)
| DARK SETTING |
Night, Dim Outdoor Spaces, Warehouse Evening 150W → up to 50 ft 200W → up to 65 ft 300W → up to 100 ft 500W → up to 165 ft 700W → up to 230 ft 1500W → up to 350 ft |
| VERY BRIGHT SETTING |

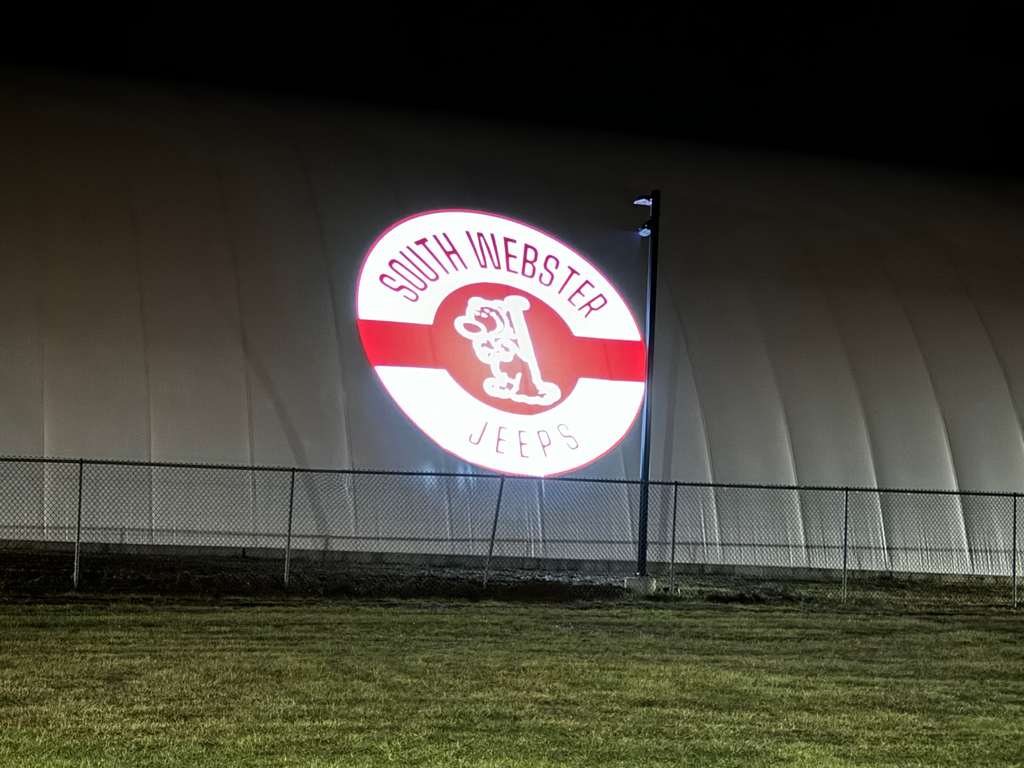

Stadiums, Airport, Atriums, Large Industrial Spaces 150W → up to 23 ft 200W → up to 29 ft 300W → up to 50 ft 500W → up to 65 ft 700W → up to 100 ft 1500W → up to 130 ft |
Not sure? Contact us—we’ll guide you through wattage, lens, and packages for your unique venue or event.
Projection Size
FORMULA : PROJECTION DISTANCE × LENS RATIO = PROJECTION DIAMETER
| Projection Distance (ft) | 1' | 3' | 5' | 10' | 15' | 20' |
|---|---|---|---|---|---|---|
| Projection Diameter (ft) | ||||||
| 1 : 0.3 LENS (DEFAULT) | 0.3' | 0.9' | 1.5' | 3.0' | 4.5' | 6.0' |
| 1 : 0.5 LENS | 0.5' | 1.5' | 2.5' | 5' | 7.5' | 10' |
| 1 : 0.6 LENS | 0.6' | 1.8' | 3.0' | 6.0' | 9.0' | 12' |
| 1 : 1 LENS | 1' | 3' | 5' | 10' | 15' | 20' |
Lens Upgrades Are Available For This High Wattage Projector.
Check out more information on choosing the
right lens for your gobo projector.
LENSES: CONTROL YOUR CANVAS
Your lens is your brushstroke in light.
| 0.20 lens ($100) |
Tight, ultra-bright logos up close. |
| 0.50 lens ($100) |
Wide coverage for storefronts and event walls. |
| 0.65 lens ($125) |
Immersive, large-scale coverage. |
| 1.0 lens ($100) |
Maximum width, bold and dramatic. |
| 1.4 lens ($125) |
Splits your projection into repeating fragments |
| Triangular Prism ($125) |
Tight, ultra-bright logos up close. |
| Pentaprism ($125) |
Creates kaleidoscopic motion. |
Wider lenses spread light thinner. Or put another way: the bigger your dream, the more light it needs.
THINGS TO CONSIDER BEFORE ORDERING
Before you join the Revolution, here’s your quick checklist:
| DISTANCE | How far will you project? Warehouses, stadiums, and outdoor venues often require longer throws. |
| LIGHT CONDITION | Dark or bright? Safety signage in daylight needs more power. |
| PROJECTION SIZE | Lens size × distance determines your logo scale. |
| LENS CHOICE | Default 1:0.33 lens gives large projections; wider lenses spread further but demand more wattage. Additional lens upgrades are available |
| BRIGHTNESS COMPENSATION | Longer distances, brighter spaces, and wide lenses = more wattage. |
| PACKAGES | One Titan is powerful; multiple Titans create an immersive wall of light. |
| POWER CORD TYPE & LENGTH | US, EU, UK, or AU plugs, with custom lengths available. |
| Creative Add-Ons | Prism lenses multiply and animate your logo. |
| Additional Remotes | Order extras for multi-operator use. |
| RENTALS | Rentals – Short to longer term use available—contact us for event and safety rentals. |
Wider lenses spread light thinner. Or put another way: the bigger your dream, the more light it needs.
POWER 150W
|
Model |
IP-DGL-150 |
|
Light source |
Power LED |
|
Color Temperature |
8000-8500K (Default 8500K White Light) |
|
Lamp Luminous Efficiency |
12000 – 14000 lm |
|
Projection Ratio |
1:0.25 (Default) – 1:0.15 | 1:0.2 | 1:0.33 | 1:0.4 | 1:0.65 |
1:1.0 | 1:1.3 (update) |
|
Rated Voltage |
AC 165-265V 50/60Hz |
|
Shell material |
Aluminum alloy |
|
Cooling system |
Aviation Cold Forged Aluminum |
|
Gobo Size |
54mm |
|
Light Source Life |
30000 Hours (Working at most 9 hours per day) |
|
Color |
4K |
|
Waterproof Level |
IP65 |
|
Single/Multi Gobo |
Single |
|
Static / Rotate |
Rotate |
|
Working Temp |
20 - 60 0C |
|
Equipped with remote control |
control ON/OFF, Timing, Switching function |
|

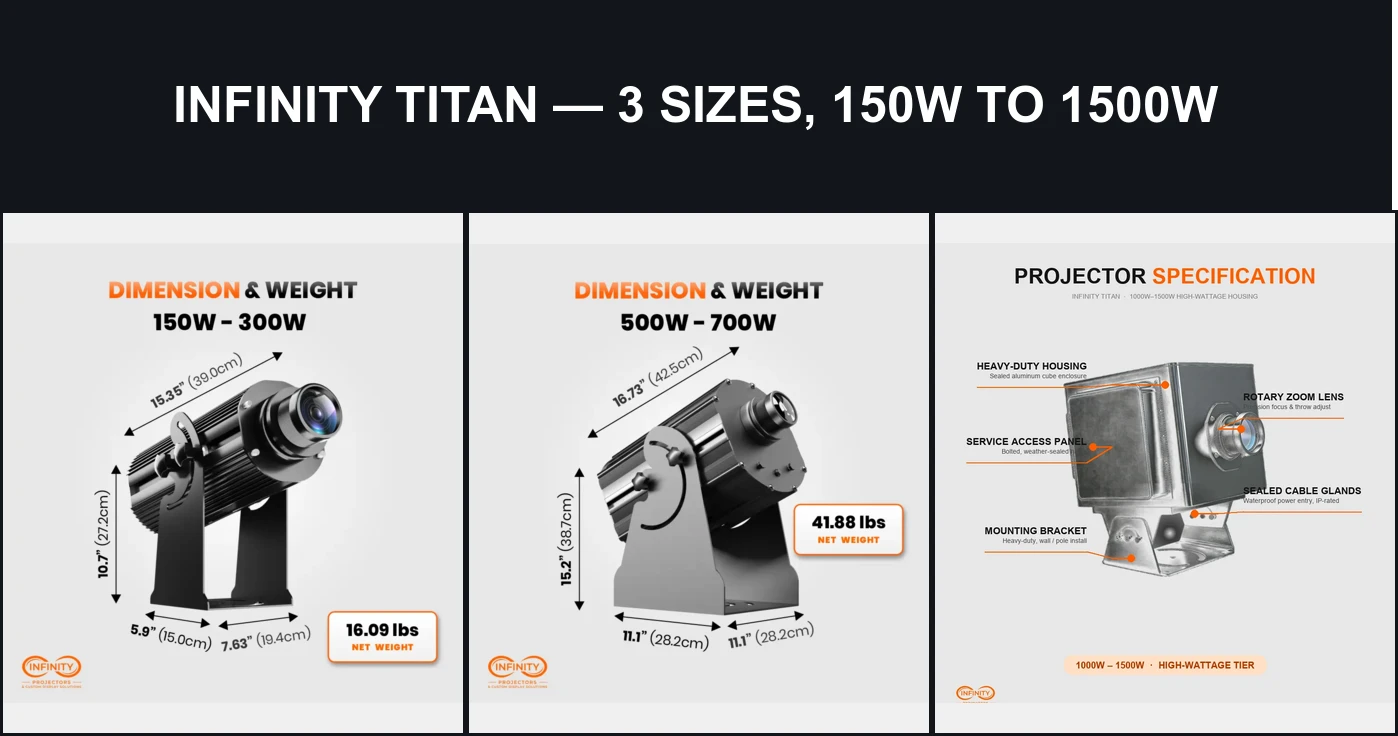

Weight |
16.09 Lbs |
|
Product Size |
15.35" (39 cm) x 10.7" (27.2 cm) x 7.63" (19.4 cm) |
POWER 200W
|
Model |
IP-DGL-200 |
|
Light source |
Power LED |
|
Color Temperature |
8000-8500K (Default 8500K White Light) |
|
Lamp Luminous Efficiency |
18000 – 20000 lm |
|
Projection Ratio |
1:0.25 (Default) – 1:0.15 | 1:0.2 | 1:0.33 | 1:0.4 | 1:0.65 |
1:1.0 | 1:1.3 (update) |
|
Rated Voltage |
AC 165-265V 50/60Hz |
|
Shell material |
Aluminum alloy |
|
Cooling system |
Aviation Cold Forged Aluminum |
|
Gobo Size |
54mm |
|
Light Source Life |
30000 Hours (Working at most 9 hours per day) |
|
Color |
4K |
|
Waterproof Level |
IP65 |
|
Single/Multi Gobo |
Single |
|
Static / Rotate |
Rotate |
|
Working Temp |
20 - 60 0C |
|
Equipped with remote control |
control ON/OFF, Timing, Switching function |
|
Weight |
16.09 Lbs |
|
Product Size |
15.35" (39 cm) x 10.7" (27.2 cm) x 7.63" (19.4 cm) |
POWER 300W
|
Model |
IP-DGL-300 |
|
Light source |
Power LED |
|
Color Temperature |
8000-8500K (Default 8500K White Light) |
|
Lamp Luminous Efficiency |
27000 – 30000 lm |
|
Projection Ratio |
1:0.25 (Default) – 1:0.15 | 1:0.2 | 1:0.33 | 1:0.4 | 1:0.65 |
1:1.0 | 1:1.3 (update) |
|
Rated Voltage |
AC 165-265V 50/60Hz |
|
Shell material |
Aluminum alloy |
|
Cooling system |
Aviation Cold Forged Aluminum |
|
Gobo Size |
54mm |
|
Light Source Life |
30000 Hours (Working at most 9 hours per day) |
|
Color |
4K |
|
Waterproof Level |
IP65 |
|
Single/Multi Gobo |
Single |
|
Static / Rotate |
Rotate |
|
Working Temp |
20 - 60 0C |
|
Equipped with remote control |
control ON/OFF, Timing, Switching function |
|
Weight |
16.09 Lbs |
|
Product Size |
15.35" (39 cm) x 10.7" (27.2 cm) x 7.63" (19.4 cm) |
POWER 500W
|
Model |
IP-CDGL-500 |
|
Light source |
Power LED |
|
Color Temperature |
8000-8500K (Default 8500K White Light) |
|
Lamp Luminous Efficiency |
35000 – 50000 lm |
|
Projection Ratio |
1:0.25 (Default) – 1:0.15 | 1:0.2 | 1:0.33 | 1:0.4 | 1:0.65 |
1:1.0 | 1:1.3 (update) |
|
Rated Voltage |
AC 165-265V 50/60Hz |
|
Shell material |
Aluminum alloy |
|
Cooling system |
Aviation Cold Forged Aluminum |
|
Gobo Size |
54mm |
|
Light Source Life |
30000 Hours (Working at most 9 hours per day) |
|
Color |
4K |
|
Waterproof Level |
IP65 |
|
Single/Multi Gobo |
Single |
|
Static / Rotate |
Rotate |
|
Working Temp |
20 - 60 0C |
|
Equipped with remote control |
control ON/OFF, Timing, Switching function |
|
Weight |
41.88 Lbs |
|
Product Size |
16.37" (42.5 cm) x 15.2" (38.7 cm) x 11.1" (28.2
cm) |
POWER 700W
|
Model |
IP-CDGL-700 |
|
Light source |
Power LED |
|
Color Temperature |
8000-8500K (Default 8500K White Light) |
|
Lamp Luminous Efficiency |
60000 – 66000 lm |
|
Projection Ratio |
1:0.25 (Default) – 1:0.15 | 1:0.2 | 1:0.33 | 1:0.4 | 1:0.65 |
1:1.0 | 1:1.3 (update) |
|
Rated Voltage |
AC 165-265V 50/60Hz |
|
Shell material |
Aluminum alloy |
|
Cooling system |
Aviation Cold Forged Aluminum |
|
Gobo Size |
54mm |
|
Light Source Life |
30000 Hours (Working at most 9 hours per day) |
|
Color |
4K |
|
Waterproof Level |
IP65 |
|
Single/Multi Gobo |
Single |
|
Static / Rotate |
Rotate |
|
Working Temp |
20 - 60 0C |
|
Equipped with remote control |
control ON/OFF, Timing, Switching function |
|
Weight |
41.88 Lbs |
|
Product Size |
16.37" (42.5 cm) x 15.2" (38.7 cm) x 11.1" (28.2
cm) |
POWER 1500W
|
Model |
IP-CDGL-1500 |
|
Light source |
Integrated BEE EYES Matrix Option |
|
Color Temperature |
8000-8500K (Default 8500K White Light) |
|
Lamp Luminous Efficiency |
120000 – 130000 lm |
|
Projection Ratio |
1 : 0.18 (Default) – 1:0.4 (update) |
|
Rated Voltage |
AC 165-265V 50/60Hz |
|
Forward Voltage |
36/44V |
|
Power Supply Type |
Two Pieces Meanwell Driver |
|
Shell material |
Aluminum alloy |
|
Cooling system |
Heat dissipation with dual system Air Cooling and Liquid Cooling |
|
Gobo Size |
54mm |
|
Light Source Life |
35000 Hours (Working at most 9 hours per day) |
|
Color |
4K |
|
Waterproof Level |
IP55 |
|
Single/Multi Gobo |
Single |
|
Static / Rotate |
Rotate |
|
Working Temp |
20 - 60 0C |
|
Equipped with remote control |
control ON/OFF, Timing, Switching function |
|
Weight |
134 Lbs |
|
Product Size |
23.2" (59 cm) x 18.1" (46 cm) x 22.4" (57 cm) |
- WATTAGE : 150W - 700W
- OUTDOOR & INDOOR
- WATERPROOF : YES (IP67)
- # OF FREE GOBOS : 2
- FREE REMOTE CONTROL
- AVAILABLE COLORS : Black
reviews (5)
-
Sandy Brooks 07 Feb, 2024

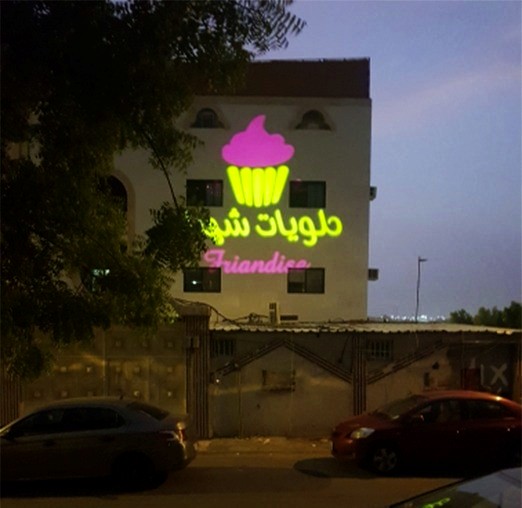

I am very happy with our custom projector. We are using it in front of our store to attract attention. Our client love it and seem to like taking selfies in front of it. I would highly recommend this projector! We got the 300watt option with a 1:5 lens upgrade.
-
Cindy S. 29 Dec, 2023
The setup was straightforward, and the projectr operates smoothly through our entire event. I want another one!!! lol
-
Julia C. 27 Dec, 2023

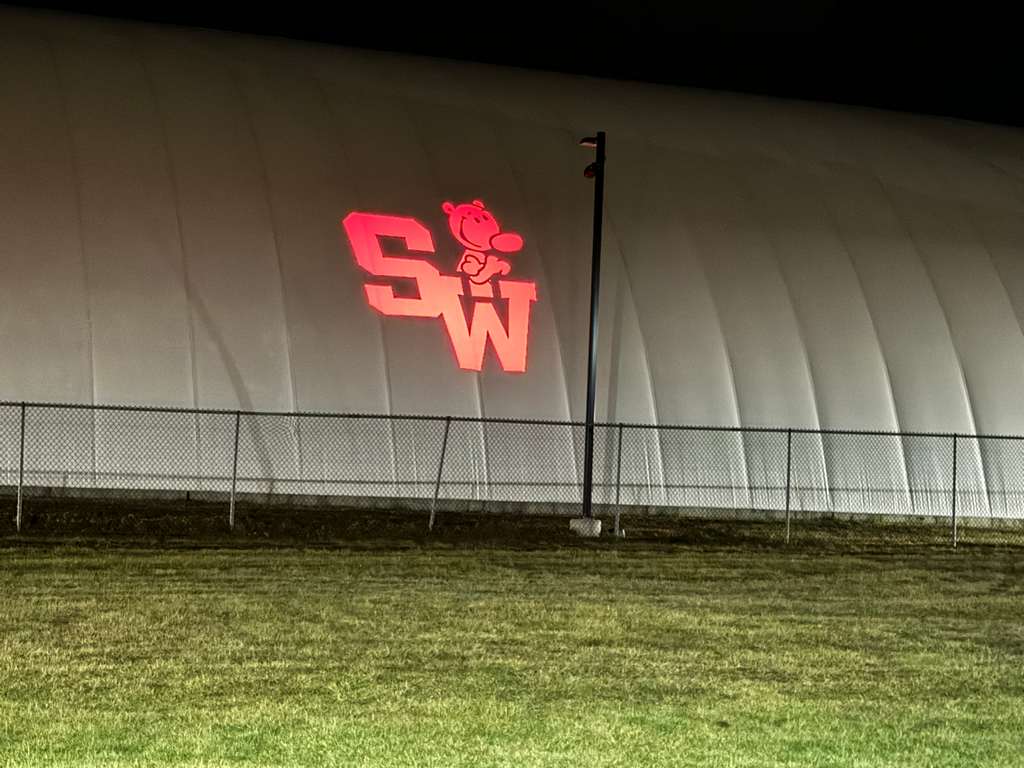

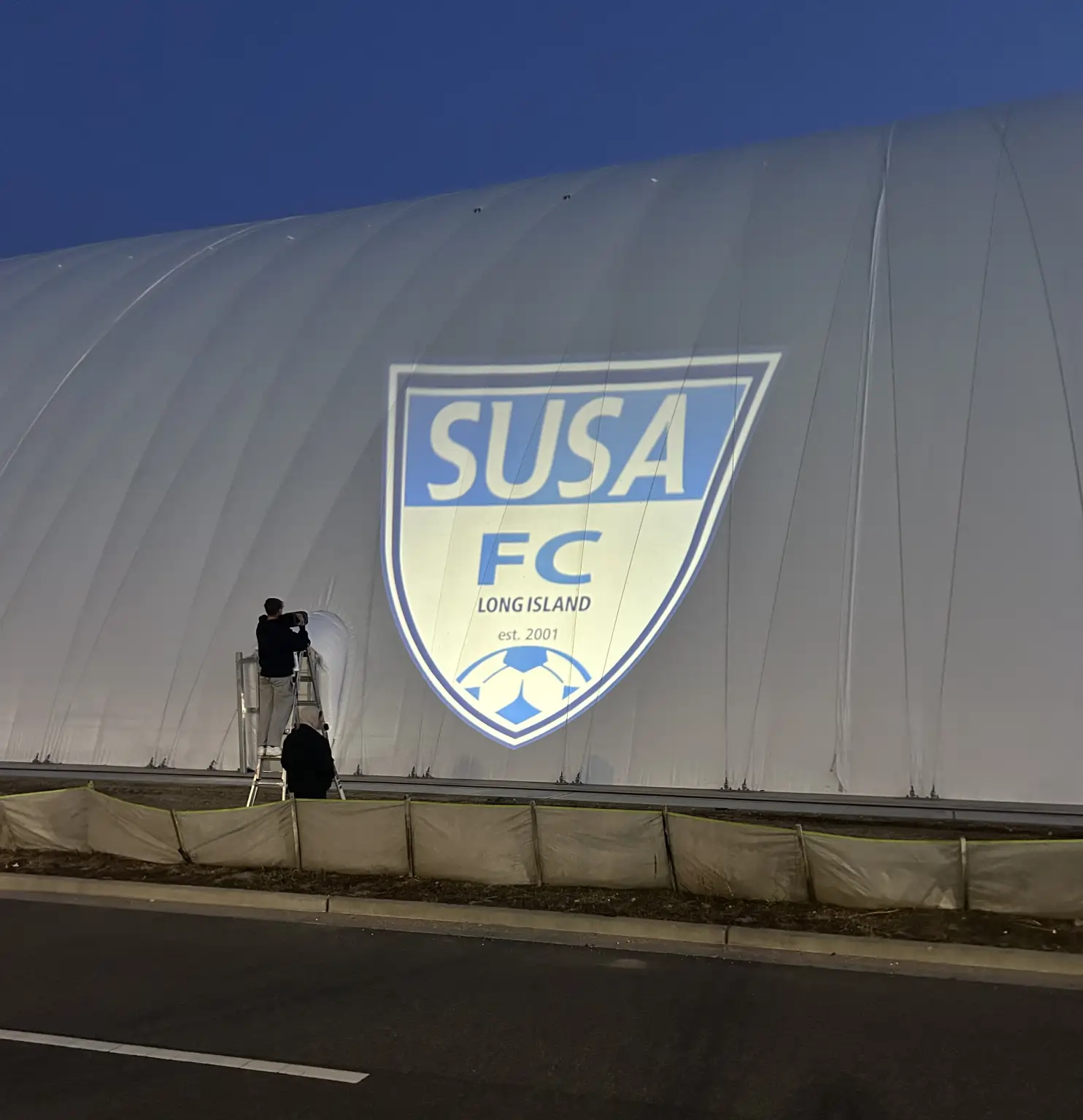

We are very happy with our new logo projector. We have installed it outdoors and are having it project on our high school stadium's exterior wall. We just bought a 600watt projector and already have a 300watt that we bought a few months ago. We love having the ability to change the message when we want. Very happy with our projector! Thank you for all your help
-
Gina Larcon 21 Dec, 2023
Our projector lights up the night at all of our outdoor events. It's portable, so we can take it to many events with no issues. The 600watt has worked great for us. Thanks for the great service. I already referred a few friends who asked about these.
-
Randall C. 14 Dec, 2023

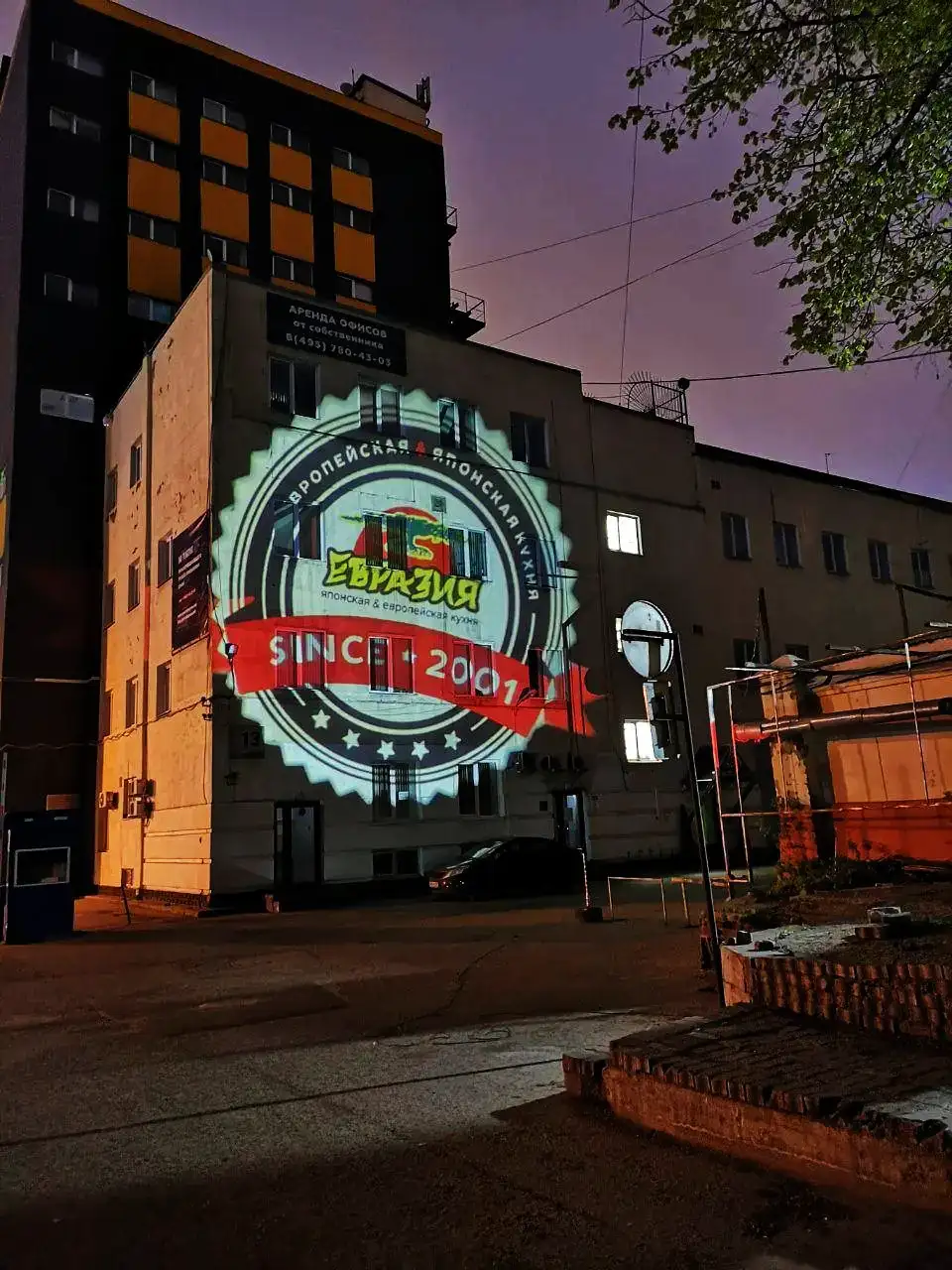

Our outdoor have never looked better! The projector's looks great at night - it really makes our logo pop in the dark and grabs the attention of everyone passing by. We have an indoor projector and now bought a 300watt projector for the side of our building.
Frequently Asked Questions
What color should I change the black to have it project as a dark gray?
Blog
Custom GOBO Projectors: Ideal for businesses and home celebrations.
