Rotating Mode
The rotating mode will allow your logos or advertising message to rotate clockwise direction. You can also adjust the rotation speed using our free remote control.
IP-CDGL-1500
1500W
120000 lm
IP55
1:0.18
>More Revolutionary Products:
SUPER High Wattage 1500W
Outdoor Projector
Join the Gobo Revolution!
4 Gobo Static High Wattage Outdoor Gobo Projector
1500W Wattage
2 Free Custom Gobos Free
Up to 35000 Hours of Use
4K/HD Imaging
IP55 Waterproof
1:0.18 Lens Available
Rotating Logo
Remote Control Free Battery Not Included
Shipping Free*
Launch Preview Pilot
Join Newsletter
Product Flyer
Installation Manual
View Stock Gobo Collection
Launch Gobo Designer
Join the Gobo Revolution!

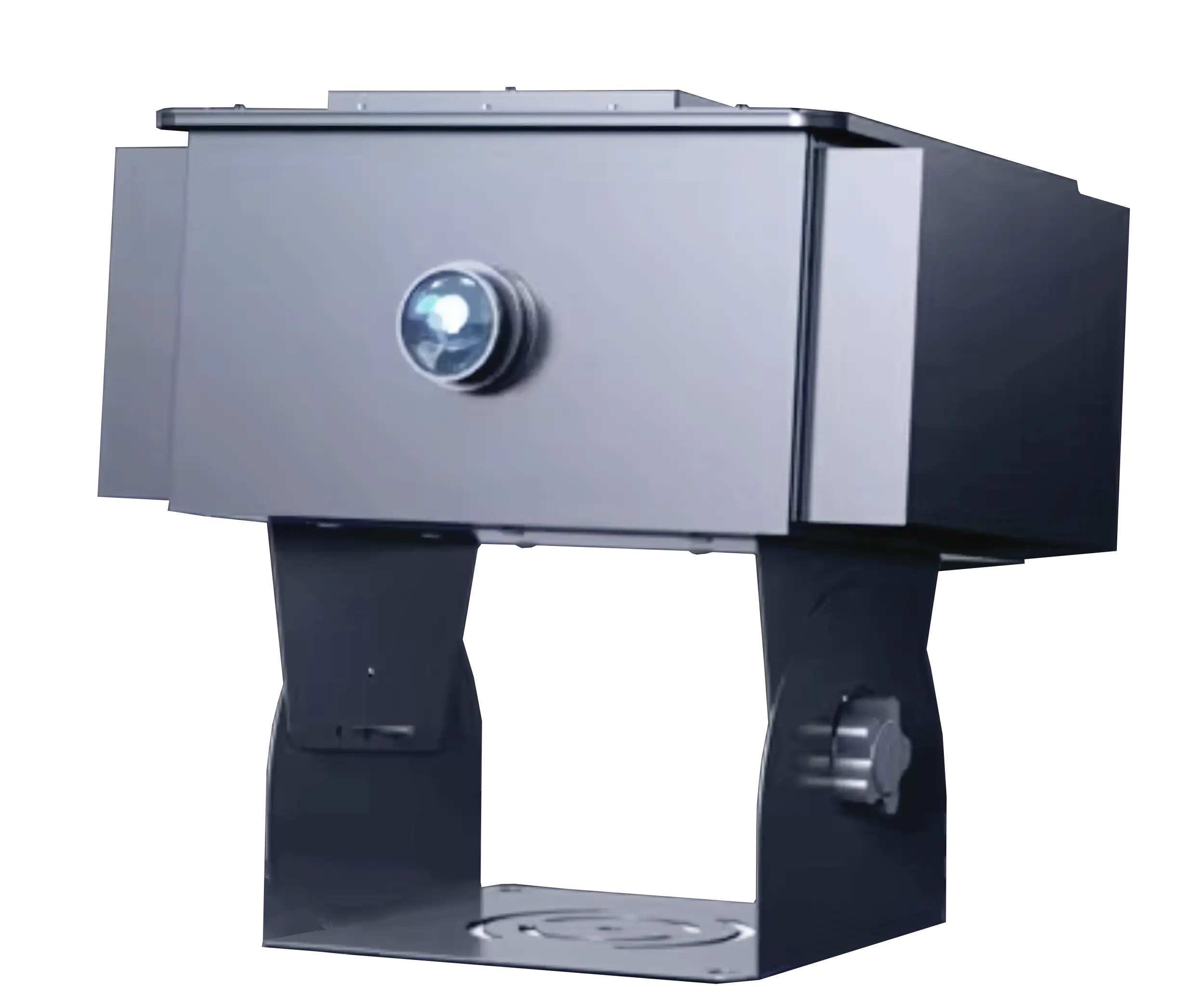

Illuminex 1500W GOBO & Logo PROJECTOR
Long-Distance Projection. Maximum Visibility. Built for Large-Scale Applications ∞
The Illuminex 1500 High Wattage Gobo & Logo Projector is engineered for applications that require extreme brightness, long projection distances, and high visibility across large environments. Designed for both indoor and outdoor use, this system delivers powerful, high-impact projection where lower wattage projectors cannot perform. Whether used as a gobo projector for industrial safety, a logo projector for large-scale branding, special events, or a high-output solution for environments that require strong illumination, the Illuminex 1500 provides consistent, professional results.
This system is commonly used for:

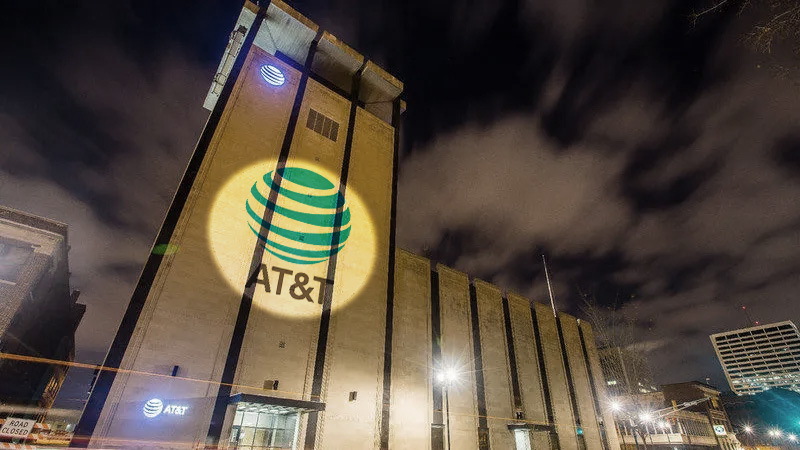

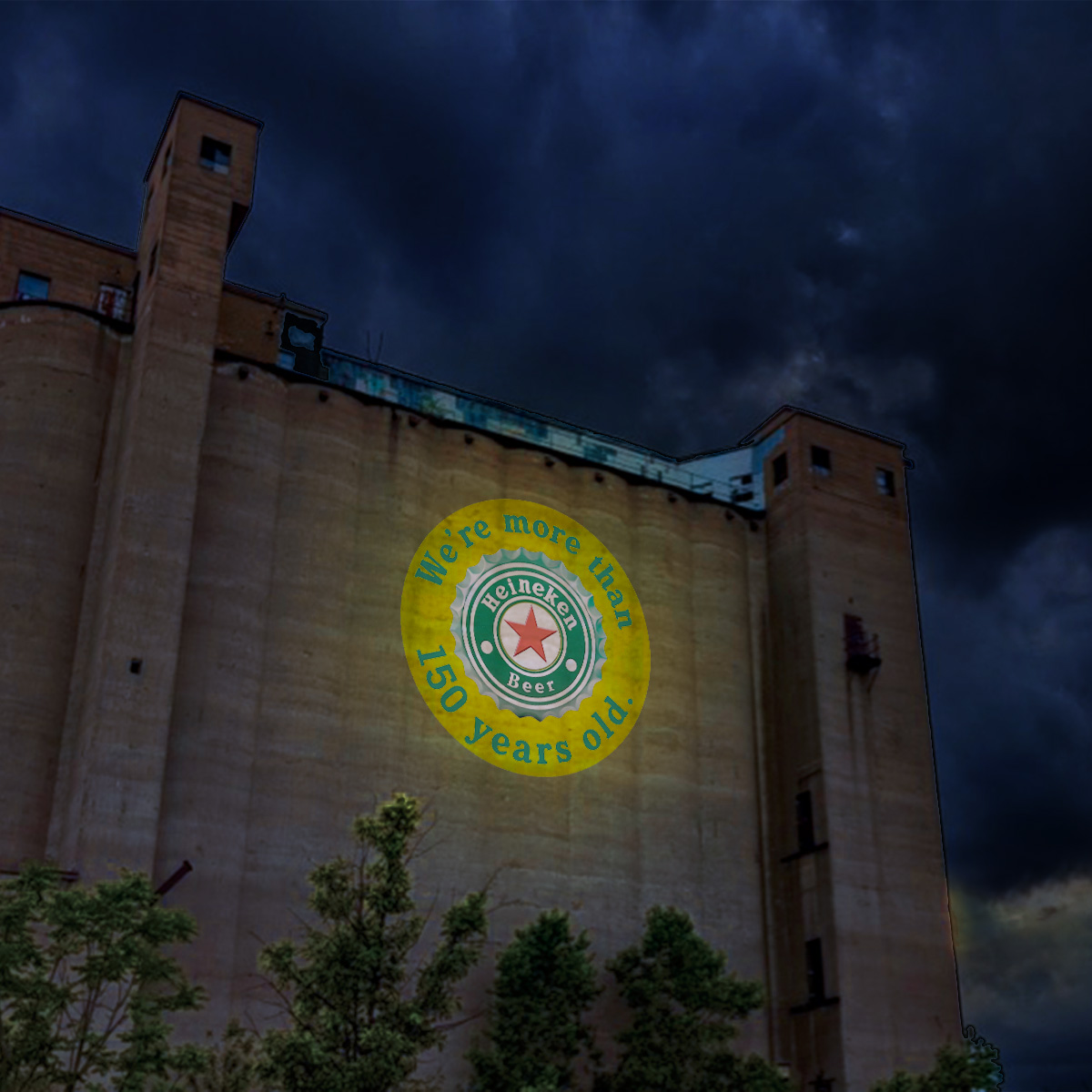

Long-distance logo projection on buildings (300–400 feet in dark environments)
Large-scale outdoor advertising and branding
High-mounted industrial and warehouse safety signage
Event and venue projection across large areas
Public space projection (parks, campuses, churches)
Real estate and “virtual signage” applications
For applications requiring powerful output, the Illuminex 1500 can also be positioned within high-lumen projection use cases (~120,000 lumen class output) where visibility over distance is critical.
Join the Projection Revolution ∞ and upgrade to a system built for visibility at scale.
Illuminex 1500 vs Illuminex 1500 IV (4 Gobo System)
The Illuminex 1500 is available in two configurations depending on your application:
🔹 Illuminex 1500 (Single Lens)
Designed for a single projection (logo or message)
Maximum brightness focused on one image
Ideal for long-distance, high-impact projection
Illuminex 1500 IV (4 Gobo Static Projector)
Holds 4 different gobos within one unit
Switch between messages using a remote
Ideal for facilities or applications requiring multiple projections without changing hardware
Illuminex 1500 IV – 4 Gobo Projector
Built for Long-Distance and High-Output Projection
In large environments, projection performance depends on distance, mounting height, and ambient lighting.
The Illuminex 1500 is designed to perform where others cannot:
Projects 300–400+ feet in darker environments
Maintains clarity across large projection sizes
Performs in open, bright, and high-ambient light environments
This makes it ideal for both industrial and outdoor applications where visibility must be maintained across distance.
👉 Explore more systems:
High Wattage Projectors

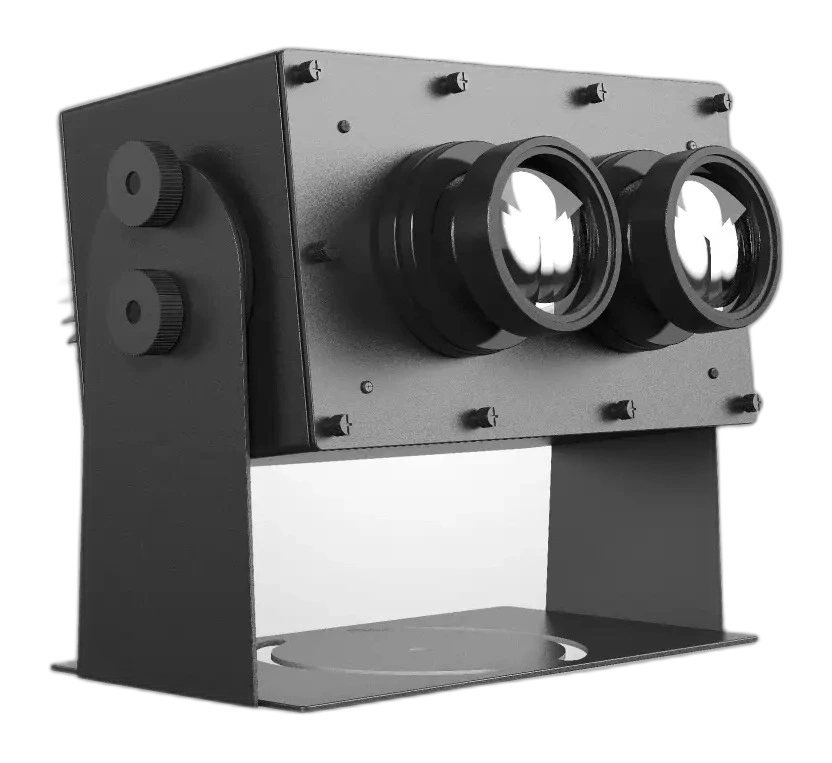

1500W Projector Included (.18 & .4 Lens)
Illuminex 1500 includes two lenses for flexibility:
.18 Lens – Long-distance, narrow projection
.4 Lens – Wider projection at shorter distances
This allows you to adjust your projection based on mounting height and application requirements.
Static & Rotating Projection Modes
The system supports both:
Static Mode – Clean, fixed projection for logos, signage, and safety messaging
Rotating (Spin) Mode – Adds motion for increased visibility and attention
Static is typically used for:
Safety and industrial applications
Rotation is commonly used for:
Branding and events
Real-World Applications

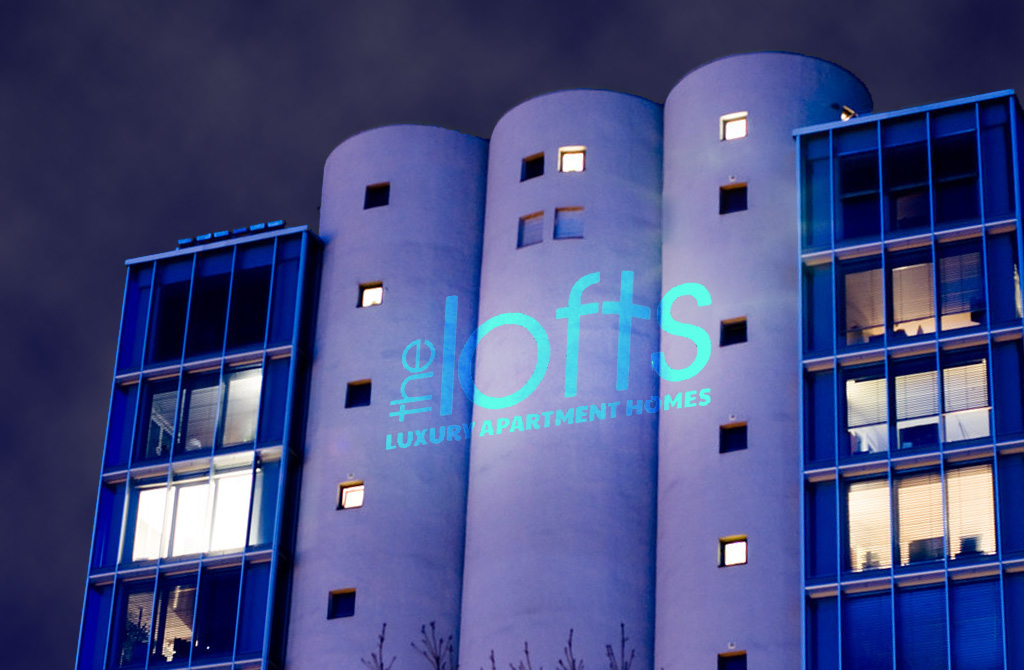

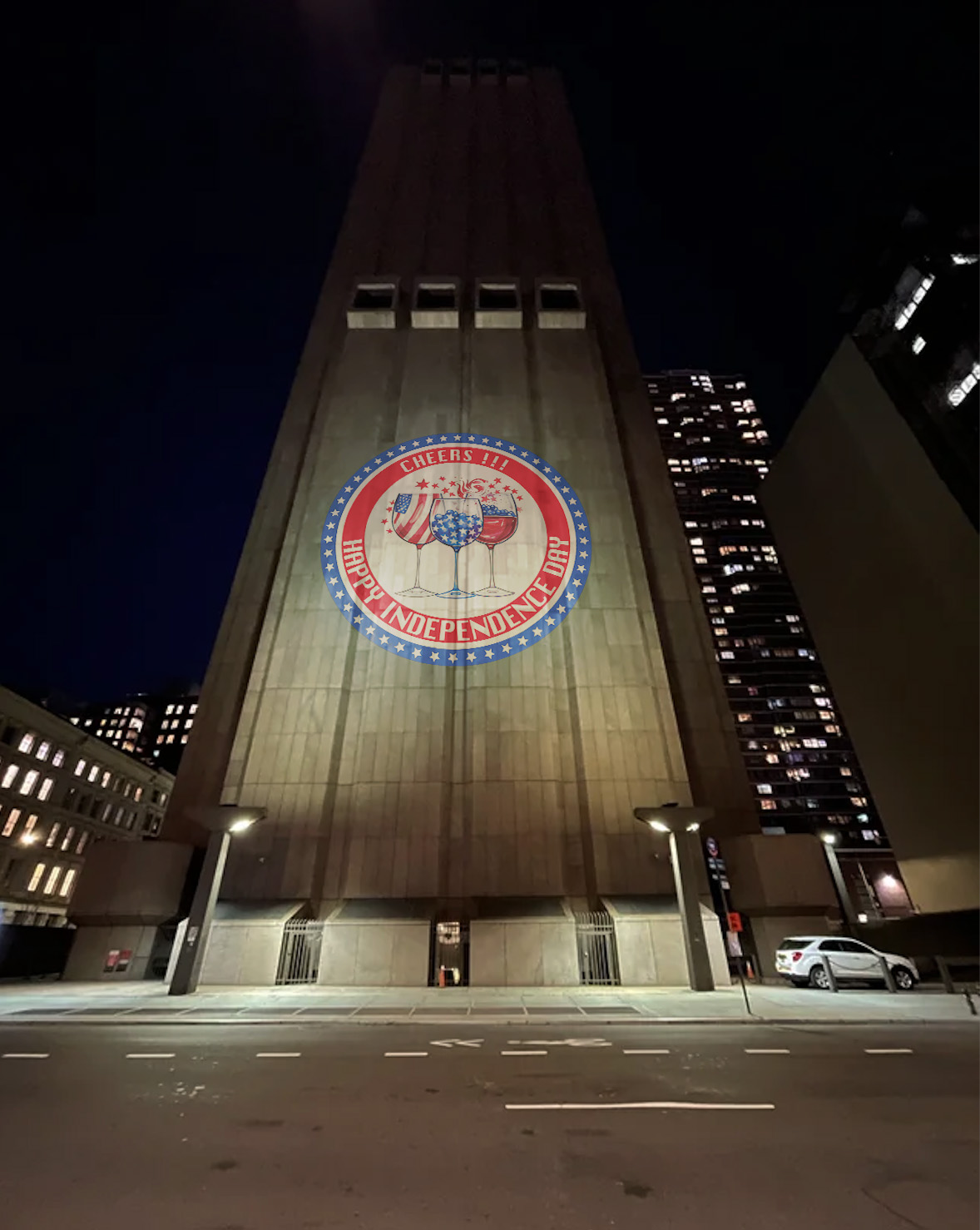

Outdoor Logo Projection
Building facades
Sidewalk and street-level messaging
Long-distance brand visibility
Industrial & Warehouse Use
High-mounted safety signage
Hazard warnings in large spaces
Forklift zone visibility
Industrial Safety Projection Systems

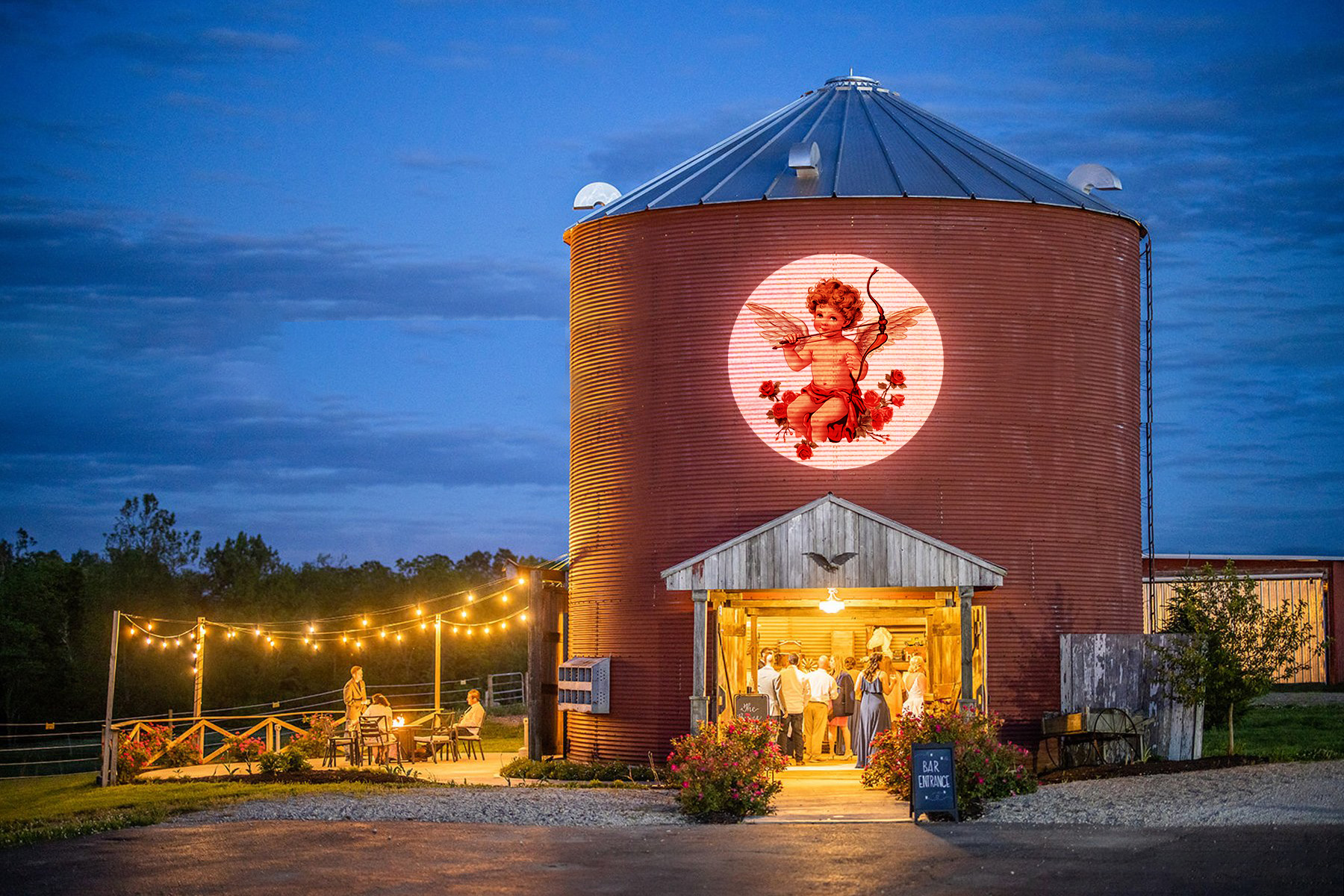

Events & Large Venues
Weddings, concerts, and corporate events
Stadiums and large gatherings
Holiday and seasonal displays
Commercial & Real Estate
Virtual signage on buildings
Temporary branding installations
Promotional messaging
Public & Institutional Use
Parks and community spaces
Churches and campuses
Municipal and city branding
👉 Explore more:
Outdoor Projection Solutions
High-Definition Gobo & Logo Projection
The Illuminex 1500 is designed for sharp, high-contrast projection at scale:
Crisp, high-definition gobo projection
Clean image edges
Strong brightness across large surfaces
Consistent performance at long distances
Built for Outdoor and Industrial Environments
IP65 waterproof housing
Integrated cooling system
Operates in hot and cold environments
Designed for long-term installations
Long-Term Performance
Up to 35,000 hours of operating life
Stable output across extended use
Reliable performance in demanding conditions
Custom Gobo & Logo Projection
Supports fully customizable projection for:
Logos and branding
Safety signage and warnings
Directional and operational messaging
Events and promotions
👉 Learn more:
Custom Gobo Design Services
When to Choose the Illuminex 1500
The ultimate choice for:
Long-distance projection (300–400+ feet)
Large projection sizes
Outdoor environments
High mounting heights
High-visibility applications
For smaller or more controlled environments:
👉 PowerPrince Projectors
👉 Multi-Lens Projectors
Maximum Visibility Without Compromise ∞
When projection needs to be seen clearly across distance and scale, the Illuminex 1500 delivers unmatched performance.
For multi-message flexibility, the Illuminex 1500 IV provides added versatility without sacrificing power.
Join the Projection Revolution ∞ and bring high-impact visibility to your environment.
Custom Gobos
Custom Gobos allow you to customize the logo or message using custom glass gobos. Our glass Gobo is a small circular slide that is loaded into the projector. Your logo or advertising message is etched into the Gobo. When the LED lights reflects off the Gobo, the logo is projected in lights The projectors include a premium aluminum alloy design and includes a free remote control that makes it easy to adjust your settings when the projector is out of reach after being installed. The projector is easy to hang and allows you to adjust the positioning for desired look.
We offer a full line of Outdoor Gobo Projectors, High Wattage Projectors as well as Digital Signage With Touchscreen Technology.
2 Free Custom Gobos
Customize your projection with two free custom gobos. Receive 1 Full Color and 1 - 1 Color custom Gobo (select from our swatch colors). Upgrade to full color for only $25.
Free
Free
1 one-color and 1 full-color gobo
Power & Clarity
Super High Wattage 1500-watt models with state-of-the-art 4K/HD imaging for exceptional brightness and sharp projection.
| Wattage | Model | Projection Range |
|---|---|---|
| 1500W | IP-CDGL1500 | Up to 350ft in the dark |
4K/HD Imaging
Achieve crisp, clear projections that can illuminate any surface with superior quality.
Up to 35000 hours of use
Our projectors are built to last even in extreme weather, with a cooling fan for optimal performance in hot environments.
IP67 Waterproof
Free Shipping (To Most Countries)
We offer free graphic design services and shipping to most countries.
Free Remote Control
Easily adjust your projector settings with the included remote control for hassle-free operation.
Easy Setup
Installation is straightforward—mount, adjust, and illuminate.
Fast Turnaround
Receive your projector within 1-2 weeks of art approval and payment
How to Choose the Right Wattage
For Advertising Projection Lamps
Select the right wattage based on distance the projector is mounted from the projector and the light setting in the projection area.
Recommended Wattage (Swipe →)
| Installation Distance (ft) | 6' | 10' | 13' | 16' | 20' | 23' | 26' | 29' | 33' | 35'-50' | 50'-65' | 65'-100' | 100'-165' | 165'-200' | 200'-350' | 328'-500' | 500'-656' |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dark Setting | 15W | 25W | 35W | 50W | 50W | 80W | 80W | 100W | 100W | 150W | 200W | 300W | 500W | 700W | 1500W | - | - |
| Normal Setting | 25W | 35W | 50W | 80W | 80W | 100W | 100W | 150W | 200W | 300W | 500W | 600W | 700W | 1500W | - | - | |
| Very Bright Setting | 35W | 50W | 80W | 100W | 100W | 150W | 200W | 200W | 300W | 500W | 600W | 700W | 1500W | - | - | - | - |
Check out more information on choosing
the
right wattage for your gobo projector.
View More Info
Projection Size
Formula PROJECTION DISTANCE × LENS RATIO = PROJECTION DIAMETER
Projection Diameter
(SWIPE →)
| Projection Distance (ft) | 1' | 3' | 5' | 10' | 15' | 20' |
|---|---|---|---|---|---|---|
| 1:018 Lens | 0.18' | 0.54' | 0.90' | 1.80' | 2.70' | 3.60' |
Check out more information on choosing the right lens for your gobo projector.
Power: 1500W
|
Model |
IP-CDGL-1500 |
|
Light source |
Integrated BEE EYES Matrix Option |
|
Color Temperature |
8000-8500K (Default 8500K White Light) |
|
Lamp Luminous Efficiency |
120000 – 130000 lm |
|
Projection Ratio |
1 : 0.18 (Default) – 1:0.4 (update) |
|
Rated Voltage |
AC 165-265V 50/60Hz |
|
Forward Voltage |
36/44V |
|
Power Supply Type |
Two Pieces Meanwell Driver |
|
Shell material |
Aluminum alloy |
|
Cooling system |
Heat dissipation with dual system Air Cooling and Liquid Cooling |
|
Gobo Size |
54mm |
|
Light Source Life |
35000 Hours (Working at most 9 hours per day) |
|
Color |
4K |
|
Waterproof Level |
IP55 |
|
Single/Multi Gobo |
Single |
|
Static / Rotate |
Rotate |
|
Working Temp |
20 - 60 0C |
|
Equipped with remote control |
control ON/OFF, Timing, Switching function |
|
Weight |
134 Lbs |
|
Product Size |
23.2" (59 cm) x 18.1" (46 cm) x 22.4" (57 cm) |
- WATTAGE : 1000W-1500W
- OUTDOOR & INDOOR
- WATERPROOF : YES (IP55)
- # OF FREE GOBOS : 2
- FREE REMOTE CONTROL
- AVAILABLE COLORS : Black
