The Gobo Projector Academy

1What is a gobo (logo) projector?

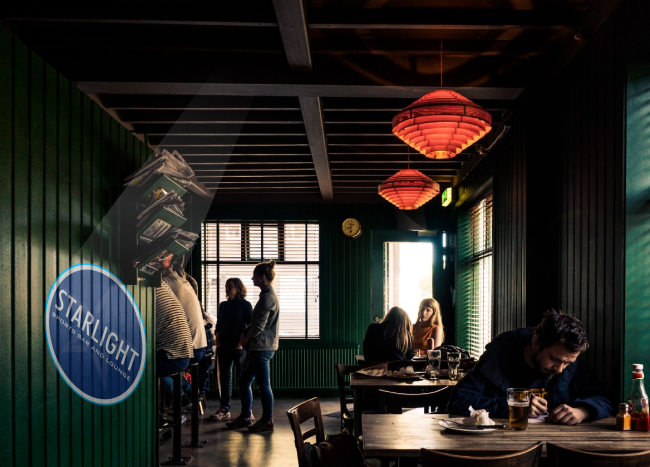

A gobo projector throws a focused image — usually a logo, pattern, or message — onto a wall, floor, ceiling, or building. "Gobo" is an old stage-lighting term ("GOes Before Optics"): it's the small stencil or printed slide that sits in front of the light source and shapes the beam into your design. Replace the gobo and you change the projection in seconds, so one projector can do the work of a dozen printed signs across a year of seasons, promotions, and events.

• Light source → gobo (your design) → lens → focused image on the surface.
• Swap the gobo to change the message — no reprinting, no reinstalling.
• Projects on almost any surface: concrete, brick, carpet, glass, water, even fog.
• No permanent signage, no structural changes — it plugs into a standard outlet.

2How a logo projector actually works

Inside the housing, a high-output LED light engine shines through your gobo and out through a lens that focuses the design onto a surface. Three things decide how it looks: the light source (wattage and lumens set the brightness), the gobo (your artwork, in glass full-color or metal one-color), and the lens (it focuses the image and sets its size at a given distance). Get those three matched to your space and the result is a crisp, bold projection that holds up for years.

• LED light engine — efficient, cool-running, rated for tens of thousands of hours.
• The gobo carries your design; the lens focuses and sizes it.
• Brightness is set by wattage/lumens; sharpness by focus and a quality lens.
• Everything runs from a standard outlet — no special power or wiring.

3Projection vs. printed signs, neon & LED screens

Why light instead of a printed sign? A banner or vinyl graphic is fixed: one message, one spot, and it fades. Projection is alive — it's the brightest thing in the room, you change it by swapping a gobo, and it costs nothing to "reprint." Neon and channel letters look great but are expensive, fragile, and permanent. LED screens win in full daylight and for video, but cost far more and are a fixed install. For flexible branding — especially indoors, at events, and after dark — projection delivers the most impact per dollar.

• vs printed/vinyl: instantly changeable, never fades, far cheaper to update.
• vs neon/channel letters: lower cost, no permanent install, swappable designs.
• vs LED screens: much cheaper and movable — but choose LED for daylight & video.
• Best for: storefronts, lobbies, events, nightlife, seasonal & promotional branding.

4What surfaces work best (and which fight you)

Projection is light bouncing back to the eye, so the surface matters almost as much as the projector. Light, matte, neutral surfaces — white or grey concrete, plaster, smooth stucco, light brick — reflect the most and give the boldest image. Dark, glossy, or busy surfaces eat or scatter the light, so they need more wattage, a smaller (brighter) image, or a lighter target. Glass and water are special cases worth planning around: clear glass won't "catch" an image from the front (you need rear-projection film or a frosted surface), and moving water shimmers, so aim at the deck or wall instead.

• Best: light, matte, neutral — white/grey concrete, plaster, stucco, light brick.
• Harder: dark walls, glossy/mirror finishes, very textured or patterned surfaces — step the wattage up or shrink the image.
• Clear glass: front projection passes through — use rear-projection film or a frosted/etched surface.
• Water: moving water shimmers — project onto the pool deck, a wall, or a still surface for a stable image.

5Projection terms in plain English (glossary)

Projection has its own vocabulary, and most of it sounds more technical than it is. Here are the words you'll meet while choosing a projector, each in one plain line — so a spec sheet never trips you up.

• Gobo — the small slide that carries your design ("goes before optics").
• Wattage — the power level, used as the customer-facing proxy for brightness.
• Lumens — the actual light output; more lumens cut through brighter rooms.
• Lens / throw ratio — sets image size: image width ≈ lens number × distance (e.g. a 0.33 lens makes ~3.3 ft from 10 ft; written formally as a 3:1 throw ratio).
• Throw distance — how far the projector sits from the surface.
• IP rating — how sealed the housing is against dust and water (IP65 = outdoor-ready).
• Keystone — the trapezoid distortion from projecting at an angle; corrected mechanically or in the gobo art.
• Single- vs multi-lens — one design at a time, or several that rotate/cycle.

6How to choose the right projector — a 6-step checklist

Buying the right projector comes down to six questions. Answer them in order and the model almost picks itself — and our Projector Finder does the whole thing in about a minute.

• 1. How far? Measure the throw distance from where the projector will mount to the surface.
• 2. How big? Decide how wide you want the finished image.
• 3. How bright is the room? Dark, average, or bright daylight — this drives wattage most.
• 4. Indoor or outdoor? Outdoor or exposed spots need an IP-rated, weatherproof model.
• 5. One design or several? Single-lens for one logo; multi-lens (4/6/8) for motion or several.
• 6. Any effect? Static logo, rotating, or a special effect like water-ripple or firefly.

Put it together

Distance and desired size point to the lens; room brightness and distance point to the wattage; indoor/outdoor points to the housing; and your creative goal points to single vs. multi-lens and the effect. If you're unsure on any one, the Finder will prescribe the exact wattage, lens, and matching projectors for you — and you can preview the result before buying.

7Throw distance & image size (the math, simplified)

Throw distance is how far the projector sits from the surface. Together with the lens it sets how big your image will be, and the rule is simple: image width ≈ throw distance × lens ratio. A 0.33 lens at 30 ft of throw projects about a 10 ft wide image (30 × 0.33 ≈ 9.9 ft). Want it bigger? Move the projector back, or fit a wider lens. Want it tighter and sharper? Move closer, or fit a longer lens.

• Image width ≈ throw distance × lens ratio.
• Farther away = bigger image (and you need more wattage to stay bright).
• Most common stocked lenses: 0.25, 0.33, 0.50, and 1:1.
• The Projector Finder converts your distance and target size into the exact lens.

8Choosing the right wattage & brightness

Wattage drives brightness, and the right wattage depends almost entirely on the light competing with your projection. The darker the space, the less power you need; the brighter the space, the more. As a working baseline at a typical 30 ft throw: a dark room is happy around 150W, an average indoor space wants roughly 300–400W, and a bright daytime storefront needs about 500W to read clearly. Our range runs from 35W for small indoor accents up to 1500W for long-throw outdoor and industrial projection.

• Dark (night, dim venue): least wattage — vivid at low power.
• Average (typical indoor retail/restaurant): step the wattage up.
• Bright (daylight, storefront, outdoor day): highest wattage to compete with ambient light.
• Lumens measure total light output — more lumens cut through brighter rooms.

A note on daylight

Projection is at its best in low light and after dark, when your image is the brightest thing around. In full daylight, even high-wattage projection competes with the sun — so most outdoor advertising projection is timed for dusk through close. If you need a true daytime solution, that's usually where an LED display, not a projector, is the right tool.

9Lenses & multi-lens projectors

The lens sets your image size at a given distance, and whether you can show one design or several. A single-lens projector shows one gobo at a time — simple and sharp. A multi-lens projector (commonly 4, 6, or 8 gobos) holds several designs at once and can rotate or cycle through them, which is ideal for venues that want motion or a sequence of messages from one unit.

• Lens ratio = image size: 0.25 (widest), 0.33, 0.50, up to 1:1 (tightest, longest throw).
• Single-lens: one crisp design, lowest cost.
• Multi-lens (4 / 6 / 8 gobo): several designs, rotation and motion.
• Lens packages let you buy a set (e.g. 3 or 5 lenses) and switch looks.

10Indoor vs. outdoor & IP ratings

If the projector will face rain, dust, or sun, it needs to be weatherproof. IP ratings tell you how sealed a unit is — an IP65-rated projector is dust-tight and protected against water jets, which covers most outdoor installs: building exteriors, patios, parking structures, and signage. Indoor projectors don't need the sealed housing and are lighter and lower-cost. For a semi-exposed spot — a covered entrance, a loading dock — choose the IP-rated model to be safe.

• IP65: dust-tight and rain-resistant — the standard for outdoor installs.
• Indoor models: lighter, lower-cost, no sealed housing needed.
• Semi-exposed spots (covered entries, docks): default to IP-rated.
• All models plug into a standard outlet — no special wiring.

11Budget & value — what drives the price

Projector price is driven mostly by wattage (brightness), the number of lenses/gobos it holds, and whether it's weatherproof or interactive. A small indoor single-lens unit is the most affordable; high-wattage outdoor and multi-gobo models cost more because they do more. The smart move is to buy for the job, not the spec sheet: the right wattage for your light and distance, the lens that hits your size, and a single vs. multi-lens choice that matches how often you'll change the message.

• Higher wattage and weatherproofing add cost — match them to your actual space.
• Multi-lens (4/6/8) costs more than single-lens but replaces several units.
• Two custom gobos are free with every projector — real savings on design.
• Bundles & quantity breaks lower the per-unit cost for multi-projector jobs.

12Common buying mistakes (and how to avoid them)

Most projection regrets come from a handful of avoidable mistakes. Knowing them upfront saves you a return and a re-buy.

• Under-powering a bright room — the image washes out. Match wattage to ambient light.
• Wrong lens for the distance — the image is too big or too small. Use the size = distance × lens rule.
• Indoor unit outdoors — exposure kills it. Use an IP65 model for any weather.
• Forgetting mounting height/angle — share it with us so we keystone-correct permanent installs.
• A logo with too much fine detail or pale colors — it won't read at distance (see the design chapter).

13Wattage by venue — a quick reference

Every space is different, but it helps to see typical venues mapped to a wattage band. These are starting points at a normal indoor throw — the actual number still depends on your exact distance, image size, and how much light you're competing with, which is exactly what the wattage finder pins down. When you're between two bands, size up: a touch of headroom keeps the image bold on the brightest day or the busiest night.

• Small indoor accent (dim lounge, booth, intimate ceiling logo): lower wattage — vivid at low power.
• Restaurant, bar, lobby, boutique (average indoor light): mid wattage for a crisp everyday logo.
• Retail storefront, showroom, large lobby (bright interior): step up the wattage to stay bold.
• Outdoor at dusk/night, building exterior, parking structure: high wattage and weatherproofing.
• Long-throw, big façade, or wide outdoor image: the top of the range (up to 1500W) or a searchlight.

The whole range, at a glance

Infinity projectors run from about 35W for small indoor accents up to 1500W for long-throw outdoor and industrial projection. Lower wattage suits dark, close, smaller-image jobs; higher wattage handles bright light, long throws, and big images. The finder reads your inputs and prescribes the exact wattage rather than leaving you to guess — and if you tell us the surface and ambient light, we'll confirm it won't wash out.

14How big / how far — worked examples

The whole math fits in one friendly line: image width ≈ lens number × distance. So a 0.33 lens — our standard — makes about a 3.3-foot image from 10 feet away, a 6.6-foot image from 20 feet, and a 10-foot image from 30 feet. Want it bigger? Move back or fit a wider (smaller-number) lens like the 0.25. Want it tighter and brighter? Move closer or fit a longer (bigger-number) lens like the 0.5. Flip the formula to plan placement: distance = desired width ÷ lens number — so for a 10-foot logo with a 0.5 lens, mount it about 20 feet away.

• 0.33 lens (our standard), 10 ft away → ~3.3 ft image · 20 ft → ~6.6 ft · 30 ft → ~10 ft (formally a 3:1 throw ratio).
• 0.5 lens, 20 ft away → ~10 ft image · a 1:1 lens at 20 ft → ~20 ft, the tightest/longest-throw look.
• Plan placement: distance = desired width ÷ lens number (10 ft image, 0.5 lens → ~20 ft back).
• Bigger image spreads the same light over more area, so larger sizes may want more wattage.

A note on notation

You'll see lenses written two ways. The plain way — the one we lead with — is the multiplier: a "0.33 lens" makes 0.33× the distance. The formal industry term is "throw ratio," written distance-to-width like 3:1 (the inverse of 0.33). They describe the same lens; the multiplier is just the easy way to picture the size. The Projector Finder turns your distance and target size straight into the right lens, so you never have to do the arithmetic.

15Single-lens projectors — the everyday workhorse

A single-lens projector shows one gobo at a time, and for most businesses that's exactly right: one bold, crisp logo on a floor, wall, ceiling, or entrance, running every day. It's the simplest, most affordable, and brightest way to project a single mark — all of the light goes to one design. You still get full flexibility, because you can swap the gobo by hand in seconds to change the message for a season or a sale. Choose single-lens when you have one logo to show and want the most impact per dollar.

• One design at a time — the simplest, lowest-cost, brightest single-mark option.
• Swap the gobo by hand in seconds to change the message — no tools, no reinstall.
• Ideal for storefront logos, lobby branding, entrances, and everyday signage.
• Available across the wattage range and in indoor or weatherproof housings.

16Multi-gobo projectors (4 / 6 / 8 designs)

A multi-gobo projector holds several designs at once — commonly 4, 6, or 8 gobos on a wheel — and can rotate or cycle through them automatically. That gives you motion and a sequence of messages from a single unit: brand logo, then tonight's special, then a holiday graphic, all without touching it. It's the right pick for venues that want their projection to feel alive, or that have more than one thing to say. You're trading a little more cost for the work of several projectors in one.

• Holds 4, 6, or 8 gobos at once and rotates or cycles through them automatically.
• Motion and multiple messages from one unit — logo, promo, season, event.
• Great for bars, clubs, events, lobbies, and seasonal displays that change often.
• Costs more than single-lens but replaces several units and adds movement.

17Gobo types: glass, steel, custom & stock

Your design lives on the gobo, and there are two main kinds. Glass (full-color) gobos reproduce photographic detail, gradients, and full-color logos — the premium choice for brand-accurate projection. Steel/metal (one-color) gobos are a single solid color cut from a stencil — crisp, durable, and cost-effective for simple logos, text, and patterns. Every Infinity projector includes two free custom gobos, and you can choose from a library of stock designs or upload your own artwork for us to print.

• Glass / full-color: photographic detail, gradients, full-color brand logos.
• Steel / one-color: single solid color, durable, budget-friendly for simple marks.
• Custom: upload your logo; we make it projection-ready (2 free with every projector).
• Stock: a ready-to-go library of patterns, seasons, and effects.

18Designing a logo that projects beautifully

Not every logo projects equally well, and a few design choices make the difference between sharp and muddy. Projection is light, so bold shapes and strong contrast win; tiny text and pale colors fade at distance. Send us vector art (or a high-resolution file) and we'll prep it for the gobo, but designing with projection in mind from the start gives the best result.

• Bold, simple shapes read best — avoid hairline details and tiny text.
• High contrast wins; very light or pastel elements can wash out, especially in one-color.
• For one-color gobos, simplify to a single solid silhouette; for full color, use glass.
• Vector art (AI, EPS, SVG, PDF) is ideal; high-res PNG works too. We handle the prep.

19Custom vs. stock gobos & reordering

Custom gobos carry your own logo or artwork — the standard for branding. Stock gobos are ready-made patterns, shapes, and seasonal designs you can use right away, perfect for ambiance, holidays, and quick changes. Most businesses run a custom logo most of the year and swap in stock designs for seasons and events. You can reorder gobos anytime, with or without buying another projector.

• Custom: your logo/artwork — the brand workhorse (2 free with every projector).
• Stock: ready-made patterns, holidays, and effects for instant variety.
• Swap gobos in seconds to change the message — no tools, no reinstall.
• Reorder anytime — already own a projector? Just order gobos.

20Changing, aligning & focusing a gobo

Swapping a gobo is a quick, tool-light job and it's what makes one projector do the work of many. You power down, open the gobo holder, drop in the new slide the right way around, close it up, and refocus. Two small things make it perfect: orientation and focus. Insert the gobo so the design lands upright and the right way round on the surface (a projector flips the image, so the slide goes in mirrored/inverted — our guide shows exactly how), then turn the focus ring until the edges are razor-sharp. For permanent installs we can pre-set this for you.

• Power down, open the holder, insert the new gobo, close, and refocus — minutes, not hours.
• Orientation matters: the projector flips the image, so the slide goes in mirrored so it lands upright.
• Focus: turn the focus ring until the edges are crisp; small distance tweaks help fine-tune.
• Keep spare gobos labeled (logo / season / event) so swaps are instant.

21Color, contrast & brightness in your gobo

Here's a detail that surprises people: a full-color glass gobo is dimmer than a one-color steel gobo at the same wattage, because the colored layers absorb more of the light passing through them. That's not a flaw — it's physics, and it's easy to plan for. If you want a rich, full-color logo, simply give the projector a little more wattage headroom or keep the image a touch smaller so it stays vivid. Strong contrast always helps: bold colors and clear shapes read far better than pale tints or fine gradients, especially at a distance.

• Full-color (glass) gobos are dimmer than one-color (steel) at the same wattage — the color layers absorb light.
• Plan for it: a little extra wattage or a slightly smaller image keeps full color bold.
• High contrast wins — strong colors and clear shapes beat pale tints and fine gradients.
• One-color gobos are the brightest and crispest choice for a simple, single-color mark.

22Static, rotating & special-effect projection

Beyond a still logo, projection can move. Static projection holds a fixed image — the classic logo on a floor or wall. Rotating (spin) projection turns the gobo for a swirling, attention-grabbing effect. Dynamic 3D and special-effect projectors add water-ripple, firefly, starry-sky, and walking-light effects that bring atmosphere to bars, events, and seasonal displays. The right effect depends on the mood you want: clean and corporate, or immersive and energetic.

• Static: a fixed, crisp logo or message — the everyday workhorse.
• Rotating / spin: motion that draws the eye on dance floors and entrances.
• Water ripple, firefly, starry sky, walking light: atmosphere and seasonal effects.
• Dynamic 3D / multi-gobo: layered motion and rotating sequences.

23Creative ways to use projection (by goal)

Most buyers come in for a logo and leave with twenty new ideas. Projection earns its keep when it does more than one job: brand the entrance, then guide foot traffic, then promote tonight's event, then dress the space for the holidays — all from one device and a handful of gobos. Here's how different goals map to projection.

• Brand the space — logo on the entrance, floor, wall, or building exterior.
• Drive traffic — sidewalk and window projection that pulls people in after dark.
• Set the mood — water-ripple, starry-sky, and color effects for bars, events, pools.
• Guide & inform — wayfinding, safety zones, lane markings, and directions.
• Promote & seasonalize — swap gobos for events, sales, and holidays in seconds.

24Water-ripple, firefly & atmosphere effects

Special-effect projectors trade a crisp logo for mood. A water-ripple effect washes a surface in slow, liquid waves of light — gorgeous on ceilings, walls, and around pools. Firefly and starry-sky effects scatter drifting points of light for a magical, immersive feel, and walking-light and color-flow effects bring energy to dance floors and entrances. These are about atmosphere, not legibility, so you tune them to the room: gentle and ambient for a spa or restaurant, bold and moving for a club or event. They shine in low light, after dark, where the effect carries the whole space.

• Water ripple: slow liquid waves of light — beautiful on ceilings, walls, and pool areas.
• Firefly / starry sky: drifting points of light for an immersive, magical mood.
• Walking light & color flow: motion and energy for clubs, dance floors, and entrances.
• Atmosphere over legibility — at their best in low light and after dark.

25Searchlights & big-building projection

When you want to be seen across a parking lot, a skyline, or a whole event field, you move up to high-output projection. Searchlights throw powerful beams into the sky to mark grand openings, festivals, and major events — pure attention from a distance. For large logos on building façades you want the top of the wattage range and a long-throw (low-number) lens so a big image still reads at night. Two things make or break a big-building projection: a light, matte façade reflects far better than dark or glass, and it really is a night-and-dusk medium — daylight competes with the sun.

• Searchlights: powerful sky beams for grand openings, festivals, and big events.
• Big façades: top-of-range wattage + a long-throw lens to keep a large image bold.
• Light, matte surfaces reflect best — dark walls and glass need much more output.
• A dusk-to-night medium — large outdoor projection competes with daylight.

26Mounting, projection angles & keystone

Projectors mount almost anywhere there's a sightline to the surface and access to power — ceilings, walls, poles, track, or the ground. The cleanest, sharpest image comes from projecting straight on (0°/90°, e.g. mounted overhead pointing straight down at a floor). You can also project at an angle, typically up to about 30°, for walls and storefronts. For permanent installs that need a steeper angle, share your mounting distance and angle in advance and we keystone-correct the gobo so the image lands square and undistorted.

• Straight-on (0°/90°) gives the sharpest, most balanced image.
• Angled installs up to ~30° are common for walls and windows.
• Steeper permanent angles: we keystone-correct the artwork to your specs.
• Mount to ceiling, wall, pole, track, or ground — wherever the sightline works.

27Outdoor installs: power, weather & placement

Outdoor projection is straightforward with the right hardware. Use an IP65-rated, weatherproof projector, plug it into a standard outlet (a weatherproof outdoor outlet or enclosure for permanent installs), and aim it so the throw distance and lens give you the size you want. Mount it where it's protected from direct impact and has airflow, and time it for dusk-to-close when projection is brightest against the night.

• Use an IP65 weatherproof model for any exposure to rain, dust, or sun.
• Standard outlet power; use a weatherproof outlet/enclosure for permanent installs.
• Give the housing airflow and protect it from direct impact.
• Schedule it for dusk-to-close for the boldest image — projection shines after dark.

28Run time, lifespan & maintenance

These are LED projectors, which means long life and low upkeep. The LED light engines are rated for tens of thousands of hours — commonly 50,000+ — so even at heavy use you're looking at years of service. For typical commercial signage we recommend running them around 8–10 hours per day (business hours plus the evening), which keeps the unit cool and maximizes lifespan; many outdoor and 24/7 installations run longer with proper ventilation. Maintenance is minimal: keep the lens clean, ensure airflow around the housing, and swap gobos as your messaging changes.

• LED light engines rated for tens of thousands of hours (commonly 50,000+).
• Recommended run time: about 8–10 hours/day for most commercial use.
• Many outdoor/24-7 installs run longer with proper ventilation.
• Maintenance: clean the lens, keep airflow clear, swap gobos as needed.

29Keystone correction — landing the image square

When you project at an angle instead of straight-on, the image stretches into a trapezoid — the far edge grows larger and a little dimmer. That's called keystone, and it's the single most common reason an otherwise-perfect install looks "off." Within about 30° of straight-on it's barely noticeable. Beyond that, there are two fixes: tilt or reposition the projector closer to perpendicular, or — for a permanent install where the angle can't change — we pre-distort the gobo artwork itself so it lands perfectly square on the wall. Share your mounting distance and angle when you order and we build the correction in.

• Keystone = the trapezoid distortion from projecting off-axis; the far edge is bigger and dimmer.
• Within ~30° of straight-on, it is barely visible — aim for perpendicular when you can.
• Fix 1: reposition or tilt the projector closer to straight-on.
• Fix 2 (permanent installs): we pre-distort the gobo art so the image lands square — just send your distance & angle.

30Accessories: timers, covers, remotes & extra lenses

A few small add-ons make a projector easier to live with. A timer switches it on and off on a schedule, so it lights up at dusk and powers down after close without anyone touching it — great for storefronts and unattended installs, and it adds run-time and saves energy. A weatherproof switch cover protects an outdoor outlet or switch from rain and tampering. A remote lets you change settings or cycle effects from the floor. And extra lenses let one projector hit different image sizes as you move it or change the install — handy if you reuse a unit across spaces.

• Timer: automatic dusk-to-close on/off — no daily switching, longer effective run-time, energy saved.
• Weatherproof switch cover: protects outdoor outlets/switches from rain and tampering.
• Remote: adjust settings or cycle effects without reaching the projector.
• Extra lenses: change image size for different spaces from the same projector.

31Troubleshooting a dim or washed-out image

If a projection looks weak, the cause is almost always one of a short list — and each has a simple fix. The most common is too much competing light: projection beats ambient light, so a bright room or daytime sun will wash out an underpowered unit. The next is an oversized image: doubling the width spreads the same light over four times the area, so it dims fast. After that, check the surface (dark or glossy reflects less), the gobo (full-color is dimmer than one-color), the angle (steep angles dim the far edge), and the basics (clean lens, sharp focus). Match wattage to your real conditions and the image snaps back to bold.

• Too much ambient light → raise the wattage, or run it in lower light / after dark.
• Image too large → shrink it (move closer or fit a longer lens) to concentrate the light.
• Dark/glossy surface → pick a lighter, matte target or step up wattage.
• Full-color gobo or steep angle → add wattage headroom; project closer to straight-on.
• Basics → clean the lens and refocus; confirm the projector is set to full output.

32Which product is right for you? A decision guide

We make more than gobo projectors, and matching the tool to the job saves money and gets a better result. Use this quick guide: choose a gobo projector for a fixed logo or pattern; an interactive projector for engagement; a video projector or digital signage for moving content; and an LED display for daylight visibility or a permanent screen.

• Fixed logo / pattern, flexible & low-cost → Gobo projector.
• Engagement, games, reactive floors/walls → Interactive projector.
• Full-motion video, animation, scheduled content → Video projector / digital signage.
• Full daylight visibility or a permanent screen → LED video wall / display.

33Interactive projectors & immersive floors

Interactive projectors add motion sensing to projection: the image reacts when people walk through it, step on it, or wave a hand. Floor and wall interactive systems turn an empty space into a game, a branded experience, or a wayfinding tool — popular in retail, family-entertainment centers, museums, lobbies, and events. Because they're used indoors and need a crisp, responsive image, lumen output and sensor coverage matter more than raw wattage.

• Motion-sensing projection that reacts to footsteps, touch, and gestures.
• Floor and wall systems; immersive games and branded experiences.
• Great for retail, family entertainment, museums, lobbies, and events.
• Prioritize lumens and sensor coverage; almost always an indoor application.

34How interactive games work — mount height & floor size

An interactive floor or wall pairs a projector with a sensor (camera, radar, or laser) that watches the projected area and reads where people move, step, or touch. Software turns that into a game or experience — splashing virtual water, kicking a ball, popping bubbles, scattering leaves — so the space reacts in real time. The key difference from a gobo projector: with an interactive system the mounting height sets the size of the play area. Mount it higher and the interactive zone gets bigger (but the image dims as it spreads); mount it lower and the zone is smaller, brighter, and more responsive. Because they live indoors, lumen output and clean sensor coverage matter more than raw wattage, and the unit needs an unobstructed view of the floor.

• Projector + sensor (camera/radar/laser) + software = a floor or wall that reacts to people.
• Mount HEIGHT sets the play-area size: higher = larger zone (dimmer); lower = smaller, brighter, snappier.
• Top-down for floors; front-mount for interactive walls — both need a clear, unobstructed view.
• Prioritize lumens and sensor coverage over wattage; calibrate the sensor to the projected area.
• Ceiling height, content library, and the number of simultaneous players guide the model — we spec it with you.

35Video projectors & digital signage

When you need full-motion video, animation, or frequently changing content rather than a fixed logo, a video projector or digital signage display is the right tool. Indoor and outdoor video projectors handle large-format moving images; digital signage displays (touchscreens, stretched bars, narrow-bezel screens) suit menus, promotions, and wayfinding at closer viewing distances. Use a gobo projector for a brand mark you set and forget; use video/signage when the content needs to move and update on a schedule.

• Video projectors: large-format full-motion video, indoor or outdoor.
• Digital signage: touchscreens, stretched-bar and narrow-bezel displays.
• Best for menus, promotions, animation, and scheduled content.
• Gobo = set-and-forget brand mark; video/signage = moving, updating content.

36LED signs & video walls

LED video walls and signs are self-illuminating panels that stay bright in any light, including full daylight — which is exactly where projection struggles. They're built from modular panels rated by pixel pitch (the distance between LEDs, e.g. P1.9 or P2.9 mm): smaller pitch means sharper detail at close range, larger pitch is fine for big walls viewed from a distance. Choose an LED display when you need daytime visibility, video content, or a permanent high-impact screen; choose projection when you want flexible, low-cost, swap-anytime branding, especially after dark.

• Self-illuminating — bright in any light, including daylight.
• Pixel pitch (P1.9, P2.9 mm…): smaller pitch = sharper close-up detail.
• Indoor and outdoor (IP-rated) video-wall configurations.
• Pick LED for daytime/video/permanent; pick projection for flexible, low-cost branding.

37Preview your projection before you buy

You don't have to imagine the result. Our Preview Pilot lets you see your logo projected in a real space — on a wall, floor, or building — and dial in distance, size, and brightness before you spend a dollar. It's the fastest way to confirm the look, the size, and the right model for your space, and it removes the biggest worry in buying projection: "will it actually look good here?"

• See your logo projected in a real environment before buying.
• Adjust distance, size, and brightness to match your space.
• Confirms the model and lens choice — no surprises on arrival.

38Packages, bundles & how to save

If you need more than one projector — or a projector plus lighting and signage — Special Packages bundle the gear at a lower per-unit price than buying à la carte. You mix and match the products you want from each power level, add lens and gobo upgrades, and the savings are built in. For larger orders, quantity breaks bring the price down further, and every projector still includes its two free custom gobos.

• Mix-and-match bundles across power levels — buy more, save more.
• Add lens, gobo, and wattage upgrades to any pick.
• Quantity breaks for multi-projector and B2B orders.
• Two free custom gobos included with every projector, every time.

39Turnaround, shipping, warranty & support

Buying projection should be low-risk. Custom gobos are produced to order with standard or rush turnaround, projectors ship worldwide, and our team supports you from the first "which one do I need?" through final focus on installation day. If you're not sure, talk to a specialist — we'd rather help you buy the right thing once than sell you the wrong thing twice.

• Custom gobos made to order — standard or rush turnaround at checkout.
• Worldwide shipping and support.
• Expert help from first question to final install.
• Not sure? A specialist will spec it with you.

40Warranty, durability & peace of mind

These are commercial-grade LED projectors built to run for years, and they're backed accordingly. The LED light engine is rated for tens of thousands of hours — typically 50,000+ — so the part that does the work is engineered to outlast many printed signs. Hardware is covered by warranty, weatherproof models are sealed (IP65) for outdoor life, and our team stays with you after the sale for setup, focus, and any questions. If something isn't right, talk to us — we'd rather make it right than have you stuck. For exact warranty terms and turnaround on your order, a specialist will walk you through it.

• Commercial-grade LED engines rated for tens of thousands of hours (commonly 50,000+).
• Hardware backed by warranty; weatherproof (IP65) models built for outdoor durability.
• Post-sale support for setup, focus, gobo swaps, and questions.
• Specialist help for exact warranty terms and turnaround on your order.

41Ordering your custom gobo — what to send

Getting your logo onto a gobo is simple, and two custom gobos are free with every projector. Send your artwork — vector files (AI, EPS, SVG, PDF) are ideal because they scale perfectly, but a high-resolution PNG works too — and our designers prepare it for projection at no extra charge, optimizing contrast and detail so it reads boldly on the surface. If you have a permanent angled install, share the mounting distance and angle and we'll keystone-correct the art so it lands square. Not sure your logo will project well? Send it over and we'll tell you honestly and suggest tweaks before anything is made.

• Two free custom gobos with every projector — just send your logo.
• Best file: vector (AI, EPS, SVG, PDF); high-resolution PNG also works.
• Our designers optimize contrast and detail for projection at no extra charge.
• Angled permanent install? Send distance & angle and we keystone-correct the art.
