Infinity KaleidoScope 4-Gobo Spin Projector: Buying Guide
Short answer: The Infinity KaleidoScope 4-Gobo Spin Projector loads 4 gobo designs into a continuously rotating carousel, blending and cycling them into a moving, kaleidoscope-style light effect — built for dancefloors, nightlife and event energy, not a still sign. It also ships with both a 3-Prism (TriScope™) and a 5-Prism (PentaScope™) lens included free — a $547.76 value on our standard line — so every spinning design multiplies into up to 12 or 20 images at once. It runs $857.88 (35W) to $2,807.88 (700W), indoor or outdoor. Need the image to stay still and readable for branding instead? See the 4-Gobo Static Projector guide.
If you're lighting a dancefloor, a nightclub wall or a party where the goal is motion and atmosphere rather than a legible sign, the 4-Gobo Spin Projector is the one built for that job — and it comes with two included lenses that turn the spin into an even bigger light show. Here's how the rotating carousel actually creates the effect, what the included lenses add, what it costs at each wattage, and how to size it for your dancefloor or venue.

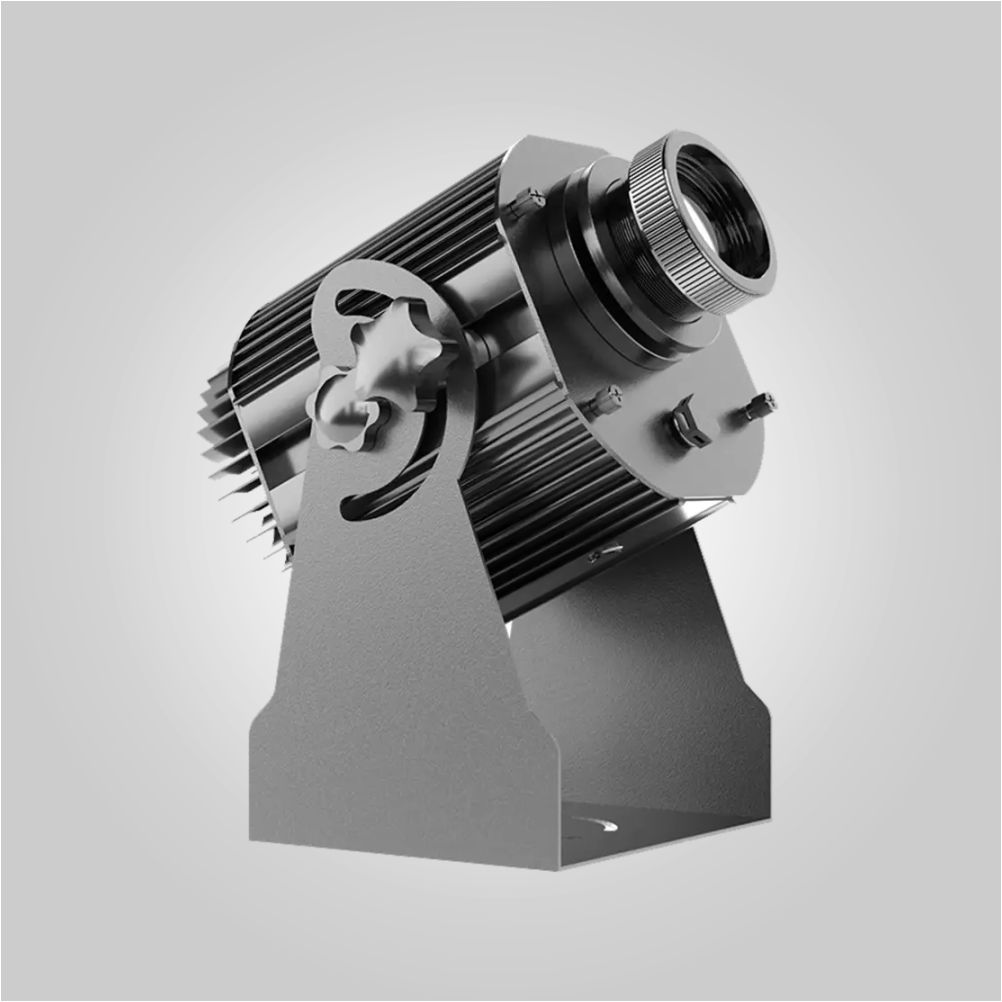

What is the Infinity KaleidoScope 4-Gobo Spin Projector?
It's an LED gobo projector built around a 4-slot carousel that rotates continuously instead of holding still. Load up to four gobo designs into the wheel, and as it spins, the projected pattern moves with it — cycling and blending the loaded designs into ongoing motion across the floor, wall or ceiling. It's the same core idea as a mirror ball or moving-head light, but purpose-built to project your actual designs rather than generic dots of light.
Same LED light engine as the rest of Infinity's gobo line — the difference is entirely in the carousel, which keeps spinning for as long as the unit is running. It also ships with two multiplying lenses included at no extra cost, covered below, so the spin isn't just one moving image — it can be several at once.
How the rotating carousel works — and spin vs. static
Inside the housing, your four gobo designs sit on a wheel between the LED engine and the lens, and that wheel is in continuous motion. You can run it with all four designs loaded so the pattern cycles and blends between them as it spins — a genuine kaleidoscope effect — or load a single design and let the spin add motion to just that one image, which reads as a slowly (or quickly, depending on setup) rotating logo or pattern. Either way, the defining trait is that the image is never static: it's always turning.
Choose Spin if…
You want continuous motion and atmosphere — a dancefloor, a nightclub, a bar, a party where the light itself is part of the entertainment, not just a sign.
Choose Static if…
You need the image to stay still and legible — branding, signage, wayfinding, a step-and-repeat backdrop where people need to read what's projected. See the 4-Gobo Static Projector guide for that version.
Both versions share the same LED engine, the same 4-gobo capacity, the same 35W–700W wattage range, and the same two included lenses covered next — so switching between them is a question of what effect the room needs, not a brightness, budget or lens tradeoff.
What's also included: the 3-Prism and 5-Prism lenses
The carousel controls how many different designs spin through the beam. A separate feature — the lens — controls how many copies of each design land on the floor or wall at once, and combined with continuous rotation, that's what turns a single spinning logo into a genuine kaleidoscope light show. Every Infinity KaleidoScope projector, including this one, ships with both of the following lenses in the box, at no extra charge:
3-Prism (TriScope™) — preinstalled by default
Splits each spinning design into 3 copies rotating together in a triangular arrangement. On Infinity's standard (non-KaleidoScope) projectors, this lens is a $188.88 paid upgrade — here it ships installed at no charge.
5-Prism (PentaScope™) — included as a free spare
Splits each spinning design into 5 copies in a star-like cluster, all turning together for a denser, more dramatic sweep. On the standard line this runs from $358.88 — here it's included in the box, ready to swap in any time.
You pick which lens ships preinstalled at checkout; the other rides along as a free spare you can swap in yourself. Combined with the spinning 4-gobo carousel, the math stacks: 4 designs × the 3-Prism lens = up to 12 spinning images, or 4 designs × the 5-Prism lens = up to 20 spinning images — all in motion, from one unit.
More 3-Prism (TriScope) examples
More 5-Prism (PentaScope) examples
3-Prism vs 5-Prism, side by side
One honest tradeoff worth knowing: splitting the beam into more copies divides the same light output across all of them, so each individual copy reads a little dimmer than a single un-split image at the same wattage. For a big dancefloor running the 5-Prism spread, that argues for a wattage tier up from what a single 3-Prism image would need in the same spot — see the wattage table below, or let the Projector Finder account for it automatically.
For the full walkthrough of how the prism lenses work across Infinity's whole KaleidoScope line (4, 6 and 8-gobo models), see the KaleidoScope Projector Guide.
Choosing the right wattage for your venue
The 4-Gobo Spin Projector spans 35W to 700W. For a moving effect, wattage matters even more than for a static sign — a spinning pattern spread across a large dancefloor is dimmer per square foot than the same pattern held tight on a small wall, and running the 5-Prism lens divides that same light across 5 copies instead of 3. So the size of the floor or wall, how much ambient light it competes with, and which lens you're running all drive the number more than the size of the venue itself:
| Wattage range | Good for | Price |
|---|---|---|
| 35W–50W | Small dancefloors or accent walls in dim rooms — an intimate lounge, a DJ booth backdrop, a small private party | $857.88–$887.88 |
| 80W–135W | Mid-size dancefloors (roughly 10×10 to 15×15 ft) under typical venue lighting — restaurant lounges, bar floors, small event halls | $957.88–$1,247.88 |
| 150W–200W | Larger dancefloors (15×15 to 25×25 ft) or rooms with brighter ambient lighting like string lights or a lit bar | $1,397.88–$1,707.88 |
| 300W–400W | Large event floors (25×25 ft and up), bright ballrooms, tents and marquees, or dusk-to-evening outdoor parties | $1,907.88–$2,187.88 |
| 500W–700W | Big outdoor dancefloors, festival stages, or any floor that has to compete with heavy stage lighting or outdoor ambient light | $2,457.88–$2,807.88 |
A common mistake is sizing for the room instead of the floor, the light and the lens: a 25×25 ft dancefloor running the 5-Prism spread under a chandelier needs meaningfully more wattage than the same floor with a single 3-Prism image in a dim warehouse venue. If you're not sure which band your event needs, the free Projector Finder asks for your throw distance, image size and ambient light and hands back the exact wattage — or read the full wattage guide for the underlying logic.
Real ways venues and events use it
Wedding reception dancefloors
Load the couple's monogram plus three accent patterns and let the carousel spin them into a moving light show — with the 5-Prism lens, that's up to 20 spinning images across the floor for the first dance and beyond.
Nightclub and bar atmosphere
Run it continuously over the bar or dancefloor as ambient motion — no DJ operator required, since the effect runs on its own once it's set.
Corporate parties and brand activations
Spin your logo alongside a few brand patterns for an afterparty or launch event that feels like a real production, not a printed banner.
Milestone celebrations
Quinceañeras, bar and bat mitzvahs, anniversary parties — load a name or age monogram with celebratory patterns for a dancefloor moment that photographs well.
Frequently asked questions
What is the Infinity KaleidoScope 4-Gobo Spin Projector?
It's an LED gobo projector with a 4-slot carousel that rotates continuously, cycling and blending up to four loaded gobo designs into a moving, kaleidoscope-style light effect. It ships with both a 3-Prism and a 5-Prism lens included free, which each multiply every spinning design into 3 or 5 copies.
What's the difference between the spin and static versions?
Both share the same LED engine, the same 4-gobo carousel, the same 35W-700W range and the same two included lenses. The spin version keeps the carousel rotating for continuous motion; the static version holds each design still and readable. See the 4-Gobo Static Projector guide for the still version.
What do the 3-Prism and 5-Prism lenses actually do?
They split each spinning gobo design into multiple copies — 3 copies in a triangular pattern with the 3-Prism (TriScope) lens, or 5 copies in a star-like cluster with the 5-Prism (PentaScope) lens, all rotating together. Both ship included with every KaleidoScope projector; you choose which one is preinstalled, and the other comes along as a free spare.
Can it spin just one design instead of cycling through all four?
Yes. You can load a single gobo and let the carousel's rotation add continuous motion to just that one image, or load all four so the pattern cycles and blends between them as it spins.
What wattage do I need for a wedding dancefloor?
A typical 15×15 to 20×20 ft dancefloor under normal reception lighting looks good at 80W–150W. Larger floors, brighter rooms, or running the 5-Prism lens across a wide floor should plan for 200W or higher. The free Projector Finder gives you an exact number for your floor size and lighting.
Does it work outdoors?
Yes — this model is built for indoor and outdoor installations across its full 35W-700W range, though outdoor parties and daylight-adjacent settings should lean toward the higher end of that range to stay visible.
How much does the 4-Gobo Spin Projector cost?
It runs from $857.88 for the 35W model up to $2,807.88 for the 700W model, with both the 3-Prism and 5-Prism lenses included at every wattage.
Find the right spin 4-gobo setup for your event ∞
Tell us your dancefloor size, throw distance and lighting, and we'll prescribe the exact wattage — then show you real pricing.
